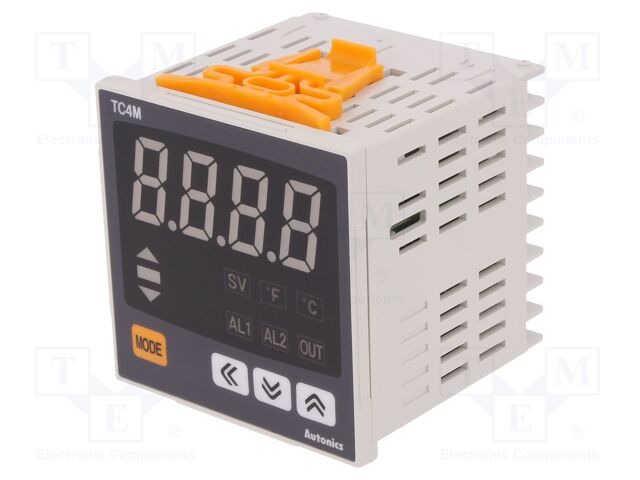

TC4M-24R Autonics
Hersteller: Autonics
Description: TEMP CONTROL RELAY SSR 100-240V
Features: Limit Function
Packaging: Box
Display Type: LED - Red Characters
Output Type: Relay, Voltage (External SSR)
Mounting Type: Panel Mount
Type: Temperature Controller (RTD, Type J, K, L)
Voltage - Supply: 100 ~ 240VAC
Panel Cutout Dimensions: Square - 68.00mm x 68.00mm
Input Range: -100°C ~ 1200°C
Display Characters - Height: 0.787" (20.00mm)
Control Method: On/Off, Proportional (PID)
Number of Characters Per Row: 4
Part Status: Active
| Anzahl | Privatkunde |
|---|---|
| 1+ | 242.95 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details TC4M-24R Autonics
Category: Temperature Regulators, Description: Automation module: regulator; temperature; -1999÷9999; SPST-NO, Mounting: on panel, Kind of display used: LED, Mounting hole dimensions: 68x68mm, Manufacturer series: TC4M, Controlled parameter range: -1999...9999, Body dimensions: 72x72x70.5mm, Operating temperature: -10...50°C, Display height 1: 20mm, Controlled parameter: temperature, Regulation for output 1: ON-OFF; P; PD; PI; PID, Output 2 electrical parameters: 12V DC / 20mA, Kind of output 3: alarm, The programming method: foil keypad, Input 1 properties: RTD; thermocouple, Output 3 electrical parameters: 250V AC / 1A, Type of automation module: regulator, Kind of output 4: alarm, Additional functions: LED status indicator, Output 4 electrical parameters: 250V AC / 1A, Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L, Output 1 electrical parameters: 250V AC / 3A, Kind of output 2: SSR, Supply voltage: 100...240V AC, Kind of output 1: SPST-NO.
Weitere Produktangebote TC4M-24R
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
TC4M-24R | AUTONICS |
Category: Temperature Regulators Description: Automation module: regulator; temperature; -1999÷9999; SPST-NO Mounting: on panel Kind of display used: LED Mounting hole dimensions: 68x68mm Manufacturer series: TC4M Controlled parameter range: -1999...9999 Body dimensions: 72x72x70.5mm Operating temperature: -10...50°C Display height 1: 20mm Controlled parameter: temperature Regulation for output 1: ON-OFF; P; PD; PI; PID Output 2 electrical parameters: 12V DC / 20mA Kind of output 3: alarm The programming method: foil keypad Input 1 properties: RTD; thermocouple Output 3 electrical parameters: 250V AC / 1A Type of automation module: regulator Kind of output 4: alarm Additional functions: LED status indicator Output 4 electrical parameters: 250V AC / 1A Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L Output 1 electrical parameters: 250V AC / 3A Kind of output 2: SSR Supply voltage: 100...240V AC Kind of output 1: SPST-NO |
auf Bestellung 4 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| TC4M-24R |
|
Hersteller: AUTONICS
Category: Temperature Regulators
Description: Automation module: regulator; temperature; -1999÷9999; SPST-NO
Mounting: on panel
Kind of display used: LED
Mounting hole dimensions: 68x68mm
Manufacturer series: TC4M
Controlled parameter range: -1999...9999
Body dimensions: 72x72x70.5mm
Operating temperature: -10...50°C
Display height 1: 20mm
Controlled parameter: temperature
Regulation for output 1: ON-OFF; P; PD; PI; PID
Output 2 electrical parameters: 12V DC / 20mA
Kind of output 3: alarm
The programming method: foil keypad
Input 1 properties: RTD; thermocouple
Output 3 electrical parameters: 250V AC / 1A
Type of automation module: regulator
Kind of output 4: alarm
Additional functions: LED status indicator
Output 4 electrical parameters: 250V AC / 1A
Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L
Output 1 electrical parameters: 250V AC / 3A
Kind of output 2: SSR
Supply voltage: 100...240V AC
Kind of output 1: SPST-NO
Category: Temperature Regulators
Description: Automation module: regulator; temperature; -1999÷9999; SPST-NO
Mounting: on panel
Kind of display used: LED
Mounting hole dimensions: 68x68mm
Manufacturer series: TC4M
Controlled parameter range: -1999...9999
Body dimensions: 72x72x70.5mm
Operating temperature: -10...50°C
Display height 1: 20mm
Controlled parameter: temperature
Regulation for output 1: ON-OFF; P; PD; PI; PID
Output 2 electrical parameters: 12V DC / 20mA
Kind of output 3: alarm
The programming method: foil keypad
Input 1 properties: RTD; thermocouple
Output 3 electrical parameters: 250V AC / 1A
Type of automation module: regulator
Kind of output 4: alarm
Additional functions: LED status indicator
Output 4 electrical parameters: 250V AC / 1A
Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L
Output 1 electrical parameters: 250V AC / 3A
Kind of output 2: SSR
Supply voltage: 100...240V AC
Kind of output 1: SPST-NO
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
