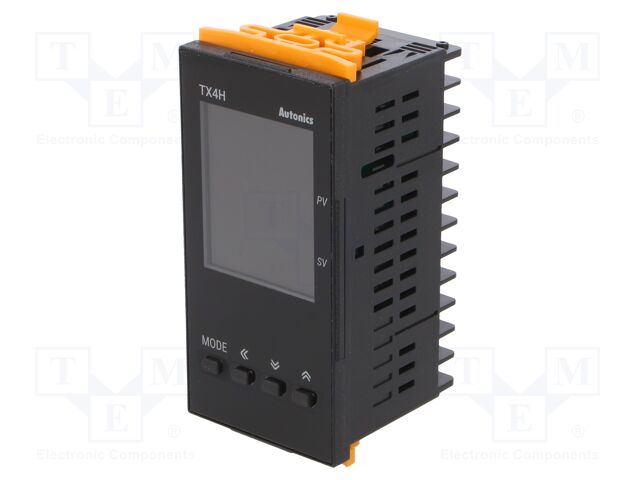

TX4H-A4R AUTONICS



Category: Temperature Regulators
Description: Module: regulator; temperature; SPST-NO; OUT 2: alarm; OUT 3: alarm
Type of module: regulator
Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L; thermocouple R; thermocouple S; thermocouple T
Controlled parameter: temperature
Kind of output 1: SPST-NO
Kind of output 2: alarm
Kind of output 3: alarm
Kind of output 4: analogue
Regulation for output 1: ON-OFF; P; PD; PI; PID
Mounting: on panel
Manufacturer series: TX4H
Output 1 electrical parameters: 250V AC / 3A
Output 2 electrical parameters: 250V AC / 3A
Output 3 electrical parameters: 250V AC / 3A
Output 4 electrical parameters: 4...20mA
Operating temperature: -10...50°C
Supply voltage: 100...240V AC
The programming method: foil keypad
Body dimensions: 48x96x51mm
Mounting hole diameter: 45x92mm
IP rating: IP50
Input 1 properties: RTD; thermocouple
Kind of display used: LCD
Display height 1: 15.8mm
Display 2 height: 13.7mm
Controlled parameter range: -1999...9999
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis |
---|---|
1+ | 85.36 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TX4H-A4R AUTONICS
Category: Temperature Regulators, Description: Module: regulator; temperature; SPST-NO; OUT 2: alarm; OUT 3: alarm, Type of module: regulator, Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L; thermocouple R; thermocouple S; thermocouple T, Controlled parameter: temperature, Kind of output 1: SPST-NO, Kind of output 2: alarm, Kind of output 3: alarm, Kind of output 4: analogue, Regulation for output 1: ON-OFF; P; PD; PI; PID, Mounting: on panel, Manufacturer series: TX4H, Output 1 electrical parameters: 250V AC / 3A, Output 2 electrical parameters: 250V AC / 3A, Output 3 electrical parameters: 250V AC / 3A, Output 4 electrical parameters: 4...20mA, Operating temperature: -10...50°C, Supply voltage: 100...240V AC, The programming method: foil keypad, Body dimensions: 48x96x51mm, Mounting hole diameter: 45x92mm, IP rating: IP50, Input 1 properties: RTD; thermocouple, Kind of display used: LCD, Display height 1: 15.8mm, Display 2 height: 13.7mm, Controlled parameter range: -1999...9999.
