A2175HBL.TC.GN

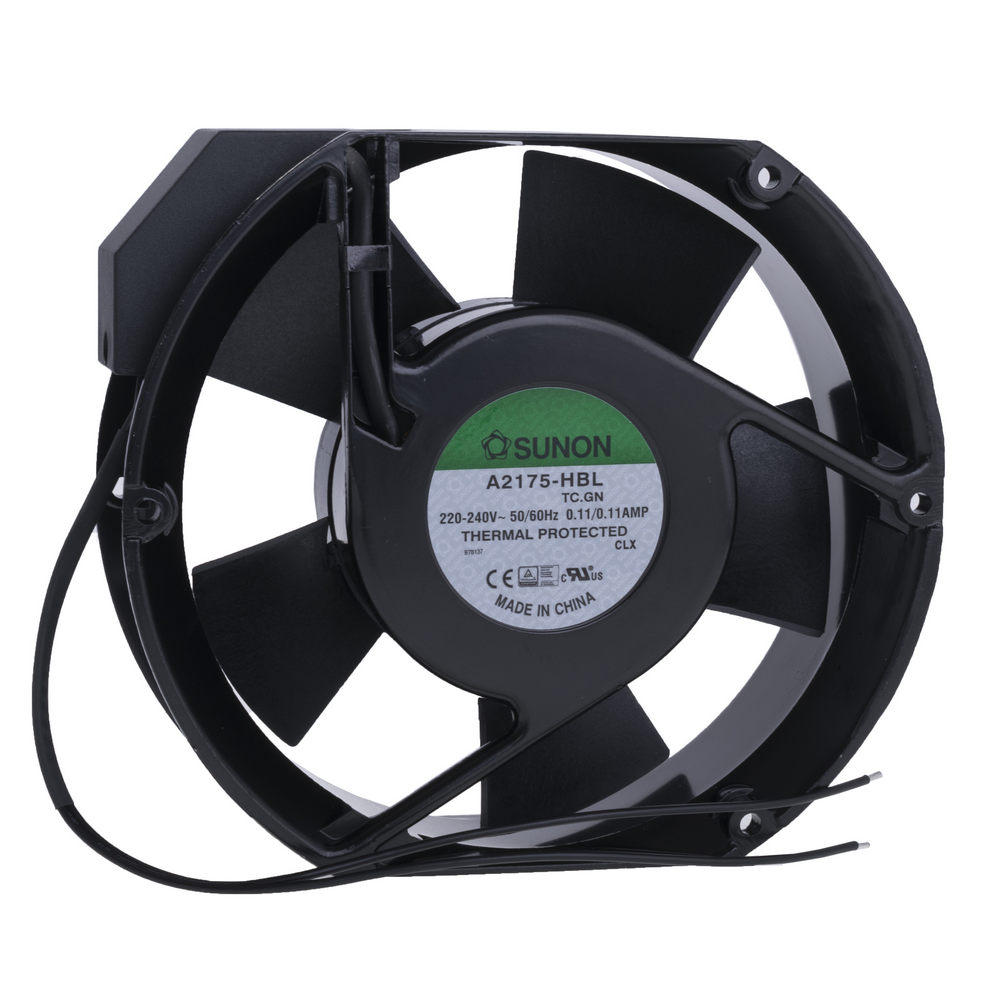

A2175HBL.TC.GN SUNON


pVersion=0046&contRep=ZT&docId=E1C0445129E097F1A6F5005056AB5A8F&compId=A2175-HBL_TC.GN(A17000660G-00)-1.pdf?ci_sign=f88e5141986c2bf4814af712c0841e97857d23b3 pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFE940E1652FA8&compId=Sunon%20AC%20Axial%20Fan%20%26%20Blower.pdf?ci_sign=b2560add853a1d2390323ddcaf3f2dfd8c4d0503 Hersteller: SUNON
Category: AC230V Fans
Description: Fan: AC; axial; 230VAC; 171x151x51mm; 344m3/h(±10%); 51dBA; ball
Wire size: 18AWG
Min. insulation resistance: 500MΩ
Operating temperature: -10...70°C
Enclosure material: aluminium
Current rating: 0.11A
Supply voltage: 230V AC
Leads: leads x2
Frequency: 50Hz
Type of fan: AC
Fan dimensions: 171x151x51mm
Fan motor: Alveolate with starting capacitor
Impeller material: thermoplastic
Flammability rating: UL94V-0
Kind of Bearing: ball
Fan efficiency: 344m3/h (±10%)
Static pressure: 15.74mm H2O
Noise level: 51dBA
Rotational rate/speed: 2800rpm
Current and power consumption tolerance: ±15%
Power consumption: 25W
Lead length: 0.28m
Kind of fan: axial
auf Bestellung 604 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
2+39.81 EUR
12+36.72 EUR
36+35.22 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details A2175HBL.TC.GN SUNON

Category: AC230V Fans, Description: Fan: AC; axial; 230VAC; 171x151x51mm; 344m3/h(±10%); 51dBA; ball, Wire size: 18AWG, Min. insulation resistance: 500MΩ, Operating temperature: -10...70°C, Enclosure material: aluminium, Current rating: 0.11A, Supply voltage: 230V AC, Leads: leads x2, Frequency: 50Hz, Type of fan: AC, Fan dimensions: 171x151x51mm, Fan motor: Alveolate with starting capacitor, Impeller material: thermoplastic, Flammability rating: UL94V-0, Kind of Bearing: ball, Fan efficiency: 344m3/h (±10%), Static pressure: 15.74mm H2O, Noise level: 51dBA, Rotational rate/speed: 2800rpm, Current and power consumption tolerance: ±15%, Power consumption: 25W, Lead length: 0.28m, Kind of fan: axial, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote A2175HBL.TC.GN nach Preis ab 35.22 EUR bis 113.46 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
A2175HBL.TC.GN A2175HBL.TC.GN Hersteller : SUNON pVersion=0046&contRep=ZT&docId=E1C0445129E097F1A6F5005056AB5A8F&compId=A2175-HBL_TC.GN(A17000660G-00)-1.pdf?ci_sign=f88e5141986c2bf4814af712c0841e97857d23b3 pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFE940E1652FA8&compId=Sunon%20AC%20Axial%20Fan%20%26%20Blower.pdf?ci_sign=b2560add853a1d2390323ddcaf3f2dfd8c4d0503 Category: AC230V Fans
Description: Fan: AC; axial; 230VAC; 171x151x51mm; 344m3/h(±10%); 51dBA; ball
Wire size: 18AWG
Min. insulation resistance: 500MΩ
Operating temperature: -10...70°C
Enclosure material: aluminium
Current rating: 0.11A
Supply voltage: 230V AC
Leads: leads x2
Frequency: 50Hz
Type of fan: AC
Fan dimensions: 171x151x51mm
Fan motor: Alveolate with starting capacitor
Impeller material: thermoplastic
Flammability rating: UL94V-0
Kind of Bearing: ball
Fan efficiency: 344m3/h (±10%)
Static pressure: 15.74mm H2O
Noise level: 51dBA
Rotational rate/speed: 2800rpm
Current and power consumption tolerance: ±15%
Power consumption: 25W
Lead length: 0.28m
Kind of fan: axial
Anzahl je Verpackung: 1 Stücke
auf Bestellung 604 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
2+39.81 EUR
12+36.72 EUR
36+35.22 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
A2175-HBL.TC.GN A2175-HBL.TC.GN Hersteller : Sunon Fans (A17000660G-00)-6.pdf Description: FAN AXIAL 171.5X51MM 220/240VAC
Packaging: Bulk
Power (Watts): 26.00W
Voltage - Rated: 240VAC
Size / Dimension: Rectangular/Rounded - 171.5mm L x 151.5mm H
Bearing Type: Ball
RPM: 3200 RPM
Air Flow: 239.0 CFM (6.69m³/min)
Width: 51.00mm
Weight: 2.1 lbs (952.5 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 58.0dB(A)
Static Pressure: 0.690 in H2O (171.8 Pa)
Part Status: Active
auf Bestellung 460 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+101.01 EUR
12+87.58 EUR
Im Einkaufswagen  Stück im Wert von  UAH
A2175-HBL.TC.GN A2175-HBL.TC.GN Hersteller : Sunon (A17000660G-00)-6.pdf AC Fans Axial Fan, 171x151x51mm, 220-240VAC, 0.62/0.69"H2O, Thermal Cutoff/Capacitor
auf Bestellung 158 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+103.38 EUR
12+93.24 EUR
Im Einkaufswagen  Stück im Wert von  UAH
A2175-HBL.TC.GN Hersteller : Sunon (A17000660G-00)-6.pdf AC Fan Ball Bearing 220V/240V 0.11A 25W/26W 50Hz/60Hz 2800RPM/3200RPM 203CFM/239CFM 51dB/58dB Flange Mount
auf Bestellung 634 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
3+59.78 EUR
12+53.8 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
A2175-HBL.TC.GN Hersteller : Sunon (A17000660G-00)-6.pdf AC Fan Ball Bearing 220V/240V 0.11A 25W/26W 50Hz/60Hz 2800RPM/3200RPM 203CFM/239CFM 51dB/58dB Flange Mount
auf Bestellung 16 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
2+113.46 EUR
5+107.82 EUR
12+95.19 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
A2175HBL.TC.GN A2175HBL.TC.GN
Produktcode: 99434
zu Favoriten hinzufügen Lieblingsprodukt

Hersteller : Sunon Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 172x151x51 mm
Spannung, V: 230 AC
Luftvolumen, m3/Stunde: 344 м³/год.
Leistung, Watt: 25 Вт
Lärm, dB: 54,5 дБ
Rotationsgeschwindigkeit, r/min: 2800 об/хв
Beschreibung: Підшипник кульковий
