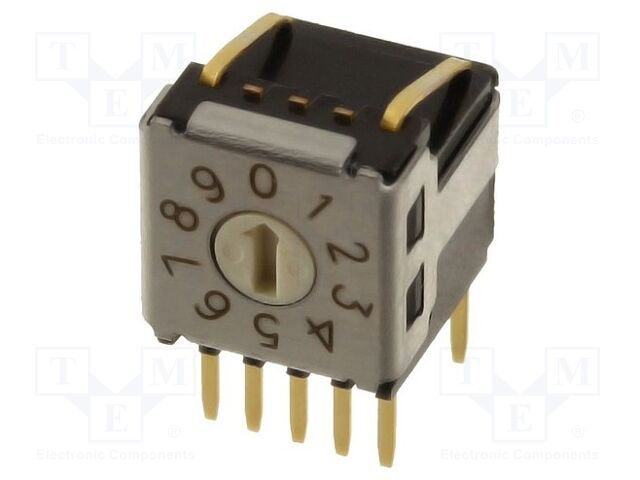

A6KV-104RF OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Encoding Switches
Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 200mΩ; 1.96Ncm
IP rating: IP60
Operating temperature: -30...80°C
Switches features: without knob
Manufacturer series: A6K
Kind of encoding switch: DEC/BCD
Type of switch: encoding switch
DC contacts rating @R: 25mA / 24V DC
Stable positions number: 10
Leads: angled; for PCB
Switching torque: 1.96Ncm
Body dimensions: 7.2x7.77x7.9mm
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 200mΩ
Number of positions: 10
Terminal pitch: 1.27mm
Mounting: THT
| Anzahl | Privatkunde |
|---|---|
| 15+ | 5.74 EUR |
| 16+ | 5.39 EUR |
| 20+ | 5.06 EUR |
| 100+ | 4.94 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details A6KV-104RF OMRON Electronic Components
Category: Encoding Switches, Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 200mΩ; 1.96Ncm, IP rating: IP60, Operating temperature: -30...80°C, Switches features: without knob, Manufacturer series: A6K, Kind of encoding switch: DEC/BCD, Type of switch: encoding switch, DC contacts rating @R: 25mA / 24V DC, Stable positions number: 10, Leads: angled; for PCB, Switching torque: 1.96Ncm, Body dimensions: 7.2x7.77x7.9mm, Min. insulation resistance: 0.1GΩ, Max. contact resistance:: 200mΩ, Number of positions: 10, Terminal pitch: 1.27mm, Mounting: THT.
Weitere Produktangebote A6KV-104RF
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
A6KV-104RF | Omron Electronics Inc-EMC Div |
Description: SWITCH ROTARY DIP BCD 0.025A 24V Number of Positions: 10 Part Status: Active Washable: No Actuator Level: Flush, Recessed Height Above Board: 0.303" (7.70mm) Actuator Type: Rotary for Tool Termination Style: PC Pin Operating Temperature: -30°C ~ 80°C Circuit: BCD Pitch: 0.050" (1.27mm), Half Mounting Type: Through Hole, Right Angle Current Rating (Amps): 25mA Packaging: Tube Voltage Rating: 24VDC Contact Finish: Gold |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
 |
A6KV-104RF | Omron Electronics |
DIP Switches / SIP Switches Thru-Hole 5x2 Tm 10P Side-Act, Flat, Wht |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| A6KV-104RF |
|
Hersteller: Omron Electronics Inc-EMC Div
Description: SWITCH ROTARY DIP BCD 0.025A 24V
Number of Positions: 10
Part Status: Active
Washable: No
Actuator Level: Flush, Recessed
Height Above Board: 0.303" (7.70mm)
Actuator Type: Rotary for Tool
Termination Style: PC Pin
Operating Temperature: -30°C ~ 80°C
Circuit: BCD
Pitch: 0.050" (1.27mm), Half
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 25mA
Packaging: Tube
Voltage Rating: 24VDC
Contact Finish: Gold
Description: SWITCH ROTARY DIP BCD 0.025A 24V
Number of Positions: 10
Part Status: Active
Washable: No
Actuator Level: Flush, Recessed
Height Above Board: 0.303" (7.70mm)
Actuator Type: Rotary for Tool
Termination Style: PC Pin
Operating Temperature: -30°C ~ 80°C
Circuit: BCD
Pitch: 0.050" (1.27mm), Half
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 25mA
Packaging: Tube
Voltage Rating: 24VDC
Contact Finish: Gold
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| A6KV-104RF |
|
Hersteller: Omron Electronics
DIP Switches / SIP Switches Thru-Hole 5x2 Tm 10P Side-Act, Flat, Wht
DIP Switches / SIP Switches Thru-Hole 5x2 Tm 10P Side-Act, Flat, Wht
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
