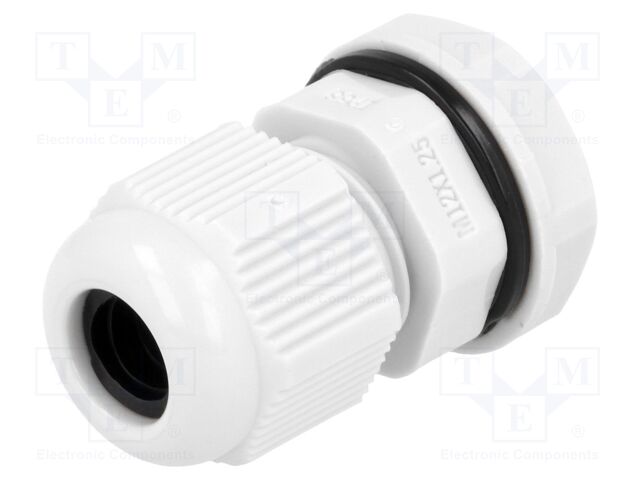

AG-12GY1 KSS WIRING
Hersteller: KSS WIRING
Category: Glands
Description: Cable gland; M12; 1.25; IP68; polyamide; grey; UL94V-2; 12.1mm
Thread pitch: 1.25
L3 dimension: 13.3mm
L1 dimension: 7.9mm
Body material: polyamide
Kit contents: gasket; nut
Dimension L2: 12.1mm
Max. operating voltage: 50V AC; 75V DC
D1 dimension: 12mm
Gland thread: M12
Type of cable accessories: cable gland
IP rating: IP68
Kind of thread: metric
Cable external diameter: 3...6.5mm
Flammability rating: UL94V-2
Body colour: grey
| Anzahl | Privatkunde |
|---|---|
| 53+ | 1.63 EUR |
| 78+ | 1.09 EUR |
| 92+ | 0.93 EUR |
| 250+ | 0.81 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AG-12GY1 KSS WIRING
Category: Glands, Description: Cable gland; M12; 1.25; IP68; polyamide; grey; UL94V-2; 12.1mm, Thread pitch: 1.25, L3 dimension: 13.3mm, L1 dimension: 7.9mm, Body material: polyamide, Kit contents: gasket; nut, Dimension L2: 12.1mm, Max. operating voltage: 50V AC; 75V DC, D1 dimension: 12mm, Gland thread: M12, Type of cable accessories: cable gland, IP rating: IP68, Kind of thread: metric, Cable external diameter: 3...6.5mm, Flammability rating: UL94V-2, Body colour: grey.
