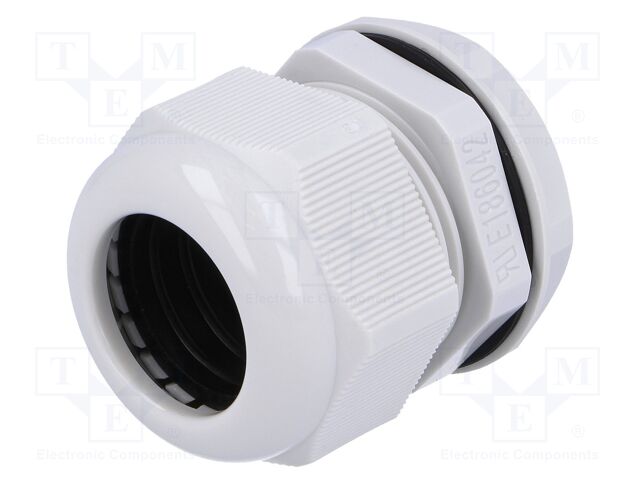

AGR32GY1 KSS WIRING
Hersteller: KSS WIRING
Category: Glands
Description: Cable gland; M32; 1.5; IP68; polyamide; grey; UL94V-2; 20.3mm; 50VAC
IP rating: IP68
Flammability rating: UL94V-2
Body colour: grey
L3 dimension: 26.2mm
L1 dimension: 14.7mm
Thread pitch: 1.5
Body material: polyamide
Kit contents: gasket; nut
Dimension L2: 20.3mm
Max. operating voltage: 50V AC; 75V DC
D1 dimension: 32mm
Gland thread: M32
Type of cable accessories: cable gland
Kind of thread: metric
Cable external diameter: 18...25mm
| Anzahl | Privatkunde |
|---|---|
| 19+ | 4.68 EUR |
| 22+ | 3.99 EUR |
| 50+ | 3.51 EUR |
| 250+ | 3.4 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AGR32GY1 KSS WIRING
Category: Glands, Description: Cable gland; M32; 1.5; IP68; polyamide; grey; UL94V-2; 20.3mm; 50VAC, IP rating: IP68, Flammability rating: UL94V-2, Body colour: grey, L3 dimension: 26.2mm, L1 dimension: 14.7mm, Thread pitch: 1.5, Body material: polyamide, Kit contents: gasket; nut, Dimension L2: 20.3mm, Max. operating voltage: 50V AC; 75V DC, D1 dimension: 32mm, Gland thread: M32, Type of cable accessories: cable gland, Kind of thread: metric, Cable external diameter: 18...25mm.
