Produkte > HIGHLY ELECTRIC > AH8108

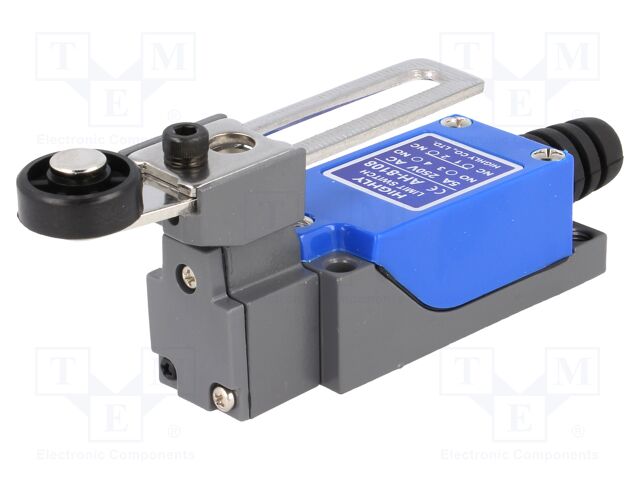

AH8108

AH8108 HIGHLY ELECTRIC

ah-series.pdf
Hersteller: HIGHLY ELECTRIC
Category: Limit Switches
Description: Limit switch; adjustable lever R 20-72mm, roller Ø18mm; 5A
Type of sensor: limit switch
Operating temperature: -25...70°C
Contact current max.: 5A
AC contacts rating @R: 5A / 125V AC
Switches features: snap action contacts
Number of mounting holes: 4
Body material: metal; plastic
Body dimensions: 64x28x25mm
Switched voltage: max. 250V AC
Connection: strain relief
Mounting holes pitch: 21/56mm
Output configuration: NO + NC
Kind of actuator: adjustable lever R 20-72mm, roller Ø18mm
IP rating: IP64
auf Bestellung 1698 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details AH8108 HIGHLY ELECTRIC

Category: Limit Switches, Description: Limit switch; adjustable lever R 20-72mm, roller Ø18mm; 5A, Type of sensor: limit switch, Operating temperature: -25...70°C, Contact current max.: 5A, AC contacts rating @R: 5A / 125V AC, Switches features: snap action contacts, Number of mounting holes: 4, Body material: metal; plastic, Body dimensions: 64x28x25mm, Switched voltage: max. 250V AC, Connection: strain relief, Mounting holes pitch: 21/56mm, Output configuration: NO + NC, Kind of actuator: adjustable lever R 20-72mm, roller Ø18mm, IP rating: IP64.
