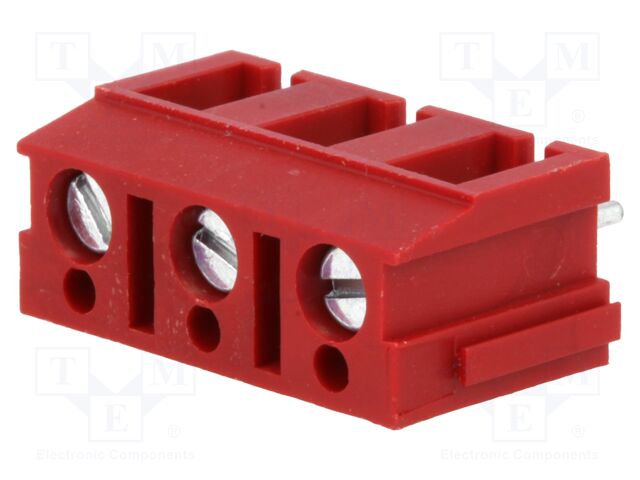

AK110/3DS-7,5-V/ROT PTR MESSTECHNIK
Hersteller: PTR MESSTECHNIK
Category: PCB terminal blocks
Description: PCB terminal block; angled 90°; 7.5mm; ways: 3; on PCBs; 2.5mm2
Type of connector: PCB terminal block
Spatial orientation: angled 90°
Contacts pitch: 7.5mm
Number of ways: 3
Mechanical mounting: on PCBs
Electrical mounting: screw terminal; THT
Wire cross-section: 2.5mm2
Wire size: 22AWG...14AWG
Connector variant: with wire protector
Connector: terminal
Contact plating: tinned
Current rating: 24A
Height: 12.5mm
Colour: red
Rated voltage: 500V
Body material: polyamide
Connectors features: assembling possibility
Length: 22.5mm
Contact material: brass
Operating temperature: -30...105°C
Depth: 9mm
Flammability rating: UL94V-0
Connector pinout layout: 1x3
Conform to the norm: CSA; UL; VDE
Anzahl je Verpackung: 1 Stücke
Category: PCB terminal blocks
Description: PCB terminal block; angled 90°; 7.5mm; ways: 3; on PCBs; 2.5mm2
Type of connector: PCB terminal block
Spatial orientation: angled 90°
Contacts pitch: 7.5mm
Number of ways: 3
Mechanical mounting: on PCBs
Electrical mounting: screw terminal; THT
Wire cross-section: 2.5mm2
Wire size: 22AWG...14AWG
Connector variant: with wire protector
Connector: terminal
Contact plating: tinned
Current rating: 24A
Height: 12.5mm
Colour: red
Rated voltage: 500V
Body material: polyamide
Connectors features: assembling possibility
Length: 22.5mm
Contact material: brass
Operating temperature: -30...105°C
Depth: 9mm
Flammability rating: UL94V-0
Connector pinout layout: 1x3
Conform to the norm: CSA; UL; VDE
Anzahl je Verpackung: 1 Stücke
auf Bestellung 888 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
89+ | 0.81 EUR |
98+ | 0.73 EUR |
135+ | 0.53 EUR |
143+ | 0.5 EUR |
