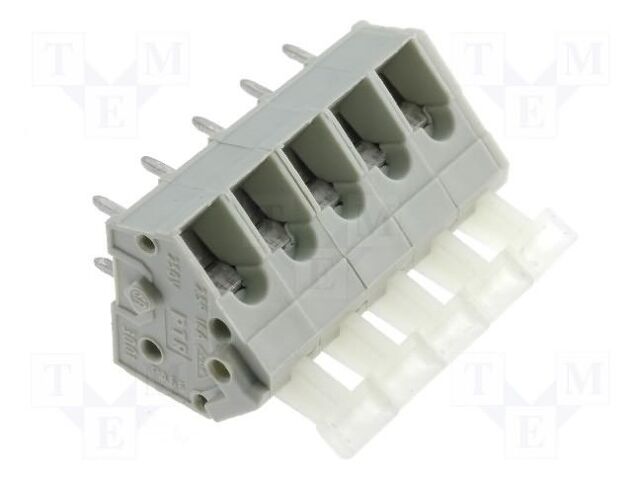

AK3001/5-KD-5.0/KIES PTR MESSTECHNIK

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 24A; 250V; angled 45°, Type of connector: PCB terminal block, Connector: terminal, Current rating: 24A, Rated voltage: 250V, Spatial orientation: angled 45°, Connector variant: with lever, Mechanical mounting: on PCBs, Electrical mounting: spring clamp; THT, Contact material: copper alloy, Colour: grey, Flammability rating: UL94V-0, Body material: polyamide 66, Wire size: 28AWG...14AWG, Depth: 14.2mm, Length: 26mm, Connector pinout layout: 1x5, Wire cross-section: 0.5...2.5mm2, Contacts pitch: 5mm, Number of ways: 5, Height: 12.9mm, Conform to the norm: UL; VDE, Operating temperature: -30...105°C, Anzahl je Verpackung: 1 Stücke.
