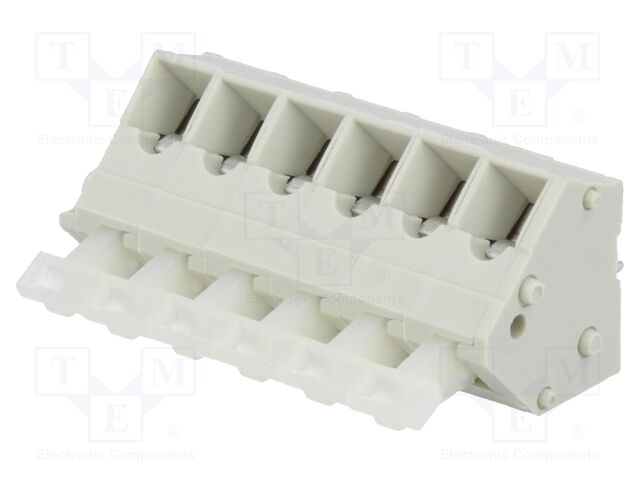

AK3001/6-KD-5.0/KIES PTR MESSTECHNIK

Category: PCB terminal blocks, Description: PCB terminal block; angled 45°; 5mm; ways: 6; on PCBs; 0.5÷2.5mm2, Type of connector: PCB terminal block, Spatial orientation: angled 45°, Contacts pitch: 5mm, Number of ways: 6, Mechanical mounting: on PCBs, Electrical mounting: spring clamp; THT, Wire cross-section: 0.5...2.5mm2, Wire size: 28AWG...14AWG, Connector variant: with lever, Connector: terminal, Current rating: 24A, Height: 12.9mm, Colour: grey, Rated voltage: 0.25kV, Body material: polyamide 66, Length: 31mm, Contact material: copper alloy, Operating temperature: -30...105°C, Depth: 14.2mm, Flammability rating: UL94V-0, Connector pinout layout: 1x6, Conform to the norm: UL; VDE, Anzahl je Verpackung: 1 Stücke.
