AP2D300SZBE

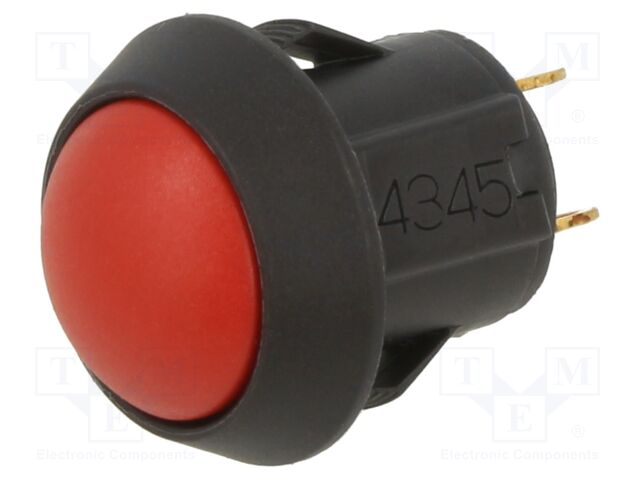

AP2D300SZBE C&K

pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA081066E4C73C0C7&compId=AP2C200TWBE.PDF?ci_sign=a64218d5f668e737eb34774975c230767118c55f Hersteller: C&K
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPST-NO; 0.4A/32VAC; 0.2A/24VDC; IP65
Manufacturer series: AP
Operating temperature: -40...105°C
IP rating: IP65
Mounting hole diameter: Ø13.7mm
Leads: for soldering
Number of terminals: 2
Electrical life: 500000 cycles
Contact material: copper
Type of switch: push-button
Contacts configuration: SPST-NO
AC contacts rating @R: 0.4A / 32V AC
DC contacts rating @R: 0.2A / 24V DC
Switching method: OFF-(ON)
Stable positions number: 1
Operating Force: 2N
Illumination: none
Actuator colour: red
Button shape: round; convex; prominent
Button height: 7.74mm
Number of positions: 2
Mounting: SNAP-IN
Contact plating: gold-plated; silver plated
Mechanical durability: 1000000 cycles
Max. contact resistance:: 50mΩ
Min. insulation resistance: 1GΩ
Terminal pitch: 5.65mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 7 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
5+15.82 EUR
6+12.27 EUR
7+11.6 EUR
240+11.15 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details AP2D300SZBE C&K

Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPST-NO; 0.4A/32VAC; 0.2A/24VDC; IP65, Manufacturer series: AP, Operating temperature: -40...105°C, IP rating: IP65, Mounting hole diameter: Ø13.7mm, Leads: for soldering, Number of terminals: 2, Electrical life: 500000 cycles, Contact material: copper, Type of switch: push-button, Contacts configuration: SPST-NO, AC contacts rating @R: 0.4A / 32V AC, DC contacts rating @R: 0.2A / 24V DC, Switching method: OFF-(ON), Stable positions number: 1, Operating Force: 2N, Illumination: none, Actuator colour: red, Button shape: round; convex; prominent, Button height: 7.74mm, Number of positions: 2, Mounting: SNAP-IN, Contact plating: gold-plated; silver plated, Mechanical durability: 1000000 cycles, Max. contact resistance:: 50mΩ, Min. insulation resistance: 1GΩ, Terminal pitch: 5.65mm, Anzahl je Verpackung: 1 Stücke.
