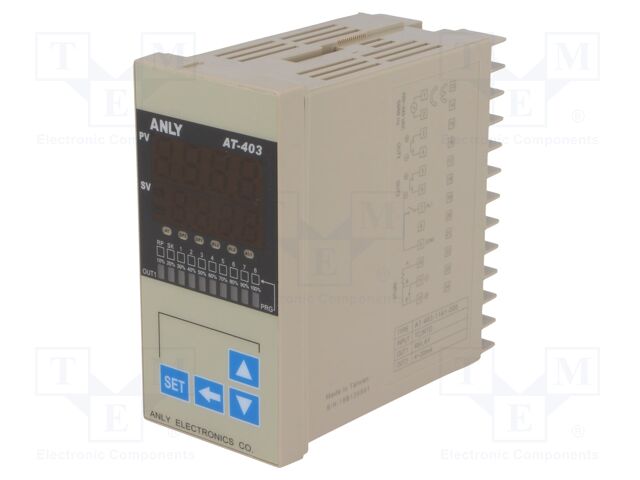

AT-403-1141-000 ANLY ELECTRONICS

Category: Temperature Regulators, Description: Automation module: regulator; temperature; -1999÷9999; SPST-NO, Manufacturer series: AT403, Input 1 properties: RTD; thermocouple, Regulation for output 1: AUTOTUNING; DEAD BAND; ON-OFF; P; PI; PID, The programming method: foil keypad, Additional functions: heating or cooling control; led bar; LED status indicator; non-volatile EEPROM memory; scroll menu, IP rating: IP20, Kind of temperature sensor: JPt100; Pt100; thermocouple B; thermocouple E; thermocouple J; thermocouple K; thermocouple N; thermocouple R; thermocouple S; thermocouple T, Kind of display used: LED x2, Mounting: on panel, Type of automation module: regulator, Kind of output 1: SPST-NO, Kind of output 3: SPST-NO, Controlled parameter: temperature, Controlled parameter range: -1999...9999, Operating temperature: -10...50°C, Display 2 height: 7mm, Display height 1: 10mm, Mounting hole diameter: 46x91mm, Body dimensions: 48x96x83mm, Supply voltage: 90...260V AC, Output 3 electrical parameters: 240V AC / 3A, Output 1 electrical parameters: 240V AC / 3A, Kind of output 2: 4...20mA, Display parameters: 4 digit, Anzahl je Verpackung: 1 Stücke.
