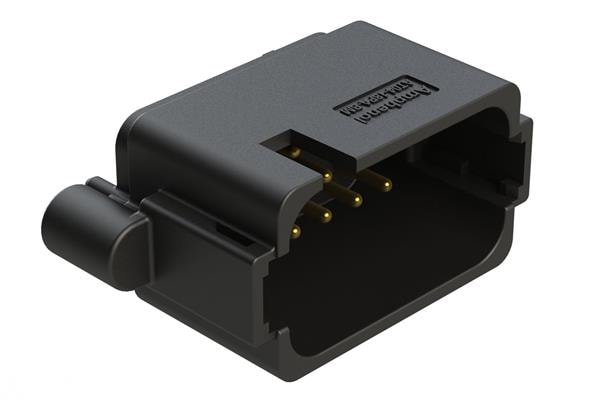

AT04-18PA-BM11BK Amphenol Sine Systems Corp

Description: 18 POSITION, PCB RECEPTACLE, FLA, Packaging: Tray, Features: Board Guide, Mounting Flange, Connector Type: Receptacle, Voltage Rating: 250V, Current Rating (Amps): 13A, Mounting Type: Through Hole, Number of Positions: 18, Number of Rows: 3, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Ingress Protection: IP67 - Dust Tight, Waterproof, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.184" (4.68mm), Contact Finish - Mating: Gold, Contact Shape: Circular, Contact Length - Post: 0.128" (3.25mm), Insulation Height: 1.010" (25.65mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic, Row Spacing - Mating: 0.190" (4.83mm).
