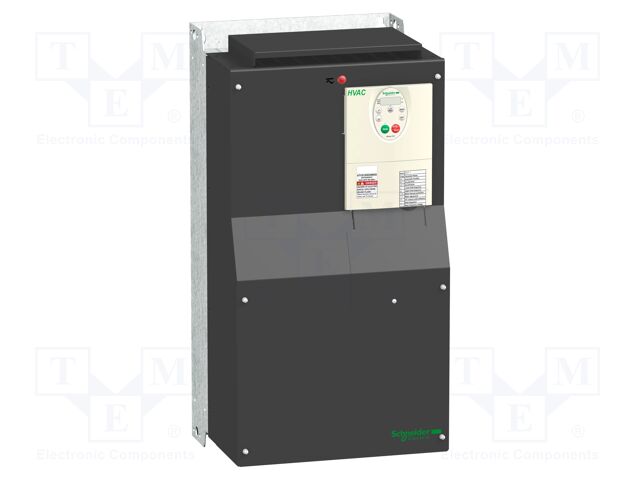

ATV212HD75N4 SCHNEIDER ELECTRIC


ATV212HD75N4_EN.pdf
Hersteller: SCHNEIDER ELECTRIC
Category: Three Phase Inverters
Description: Automation module: vector inverter; 75kW; 3x400VAC; 3x380÷480VAC
Type of automation module: vector inverter
Max motor power: 75kW
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Voltage output: 0...10V DC
Current output: 0...20mA
Electrical connection: screw terminals
Mounting: for wall mounting
The programming method: PC; push-buttons
Additional functions: PID regulator
Protection: anti-overload OLP; anti-overload OPP; anti-overvoltage OVP; motor blockade; motor earth fault; overheating OTP; undervoltage UVP
Number of analog inputs: 2
Operating temperature: -10...40°C
Output frequency: 0.5...200Hz
Current rating: 0.16kA
Number of analog outputs: 1
IP rating: IP21
Manufacturer series: ATV212
Application: fans; for pump
Related items: TCSMCNAM3M002P
Driver features: integrated EMC filter
Trade name: Altivar
Communictions protocol: BACnet/IP; Modbus
Number of digital inputs: 3
Number of digital outputs: 2
Dimensions: 290x320x630mm
