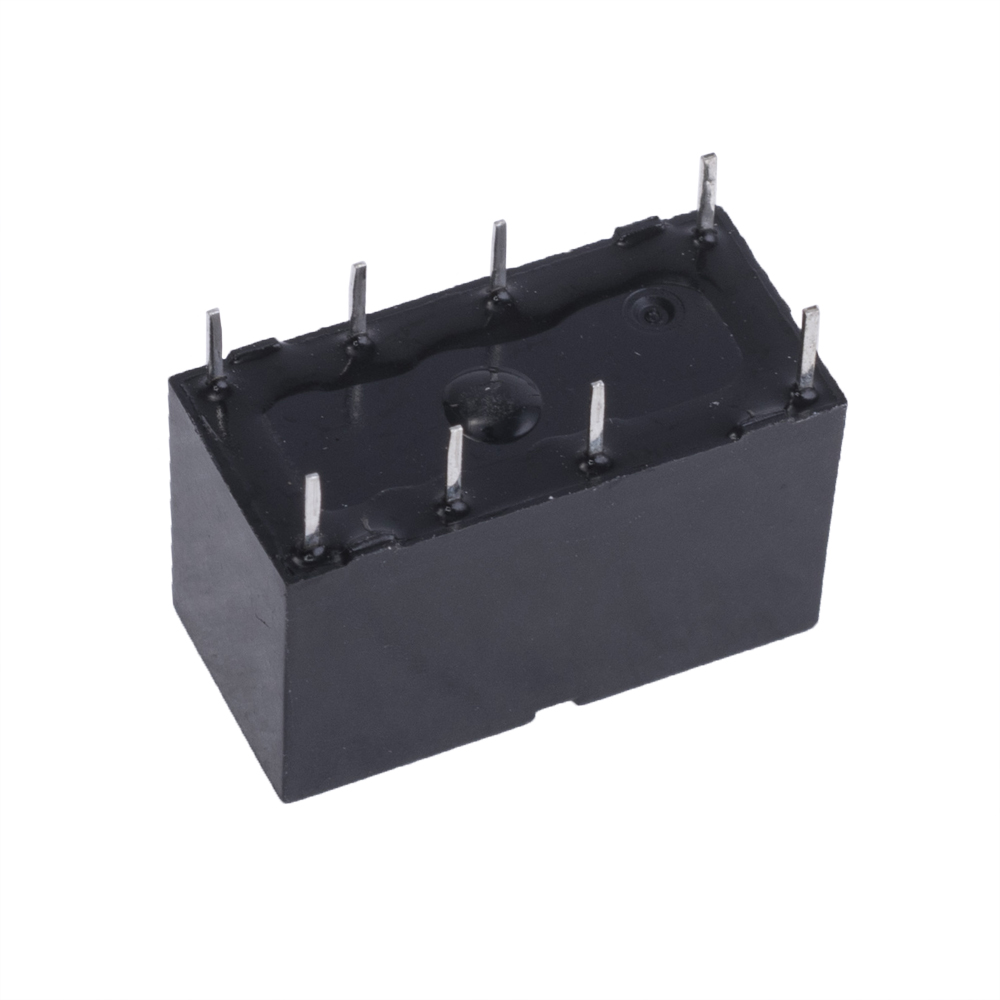

AZ822-2C-24DSE ZETTLER

Produktcode: 92684
Hersteller: ZETTLERRelaistyp: Мініатюрне
Beschreibung: Тип контактів: 2C; Uкотушки: 24В; Iкомм: 1 А
Abmessungen: 20x9,8x12mm
Spulenspannung: 24 VDC
Strom max: 1 A
Kontaktkonfiguration: DPDT(2C)
Schaltspannung: 120 VAC; 24 VDC
auf Bestellung 2 Stück:
Lieferzeit 21-28 Tag (e)
erwartet 50 Stück:
50 Stück - erwartet
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote AZ822-2C-24DSE nach Preis ab 0.99 EUR bis 6.35 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
AZ822-2C-24DSE | Hersteller : ZETTLER |
![]() Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/120VAC; AZ822 Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 24V DC Contact current max.: 2A AC contacts rating @R: 0.5A / 120V AC DC contacts rating @R: 1A / 24V DC Manufacturer series: AZ822 Switched voltage: max. 220V DC; max. 250V AC Relay variant: miniature Mounting: PCB Coil resistance: 2.88kΩ Coil voltage min.: 16.8V DC Coil voltage max.: 52.9V DC Body dimensions: 20x9.8x12mm Coil power consumption: 98mW Operating temperature: -55...90°C Terminal pitch: 5mm IP rating: IP64 Operate time: 5ms Release time: 2ms Contact resistance: 50mΩ Anzahl je Verpackung: 1 Stücke |
auf Bestellung 9983 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
![]() |
AZ822-2C-24DSE | Hersteller : ZETTLER |
![]() Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/120VAC; AZ822 Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 24V DC Contact current max.: 2A AC contacts rating @R: 0.5A / 120V AC DC contacts rating @R: 1A / 24V DC Manufacturer series: AZ822 Switched voltage: max. 220V DC; max. 250V AC Relay variant: miniature Mounting: PCB Coil resistance: 2.88kΩ Coil voltage min.: 16.8V DC Coil voltage max.: 52.9V DC Body dimensions: 20x9.8x12mm Coil power consumption: 98mW Operating temperature: -55...90°C Terminal pitch: 5mm IP rating: IP64 Operate time: 5ms Release time: 2ms Contact resistance: 50mΩ |
auf Bestellung 9983 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
![]() |
AZ822-2C-24DSE | Hersteller : American Zettler |
![]() Packaging: Tray Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -55°C ~ 90°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 6.25 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Palladium (AgPd), Gold (Au) Contact Form: DPDT (2 Form C) Contact Rating (Current): 2 A Switching Voltage: 250VAC, 220VDC - Max Must Release Voltage: 1.2 VDC Must Operate Voltage: 16.8 VDC Operate Time: 5 ms Release Time: 2 ms Part Status: Active Approval Agency: cUR, UL Load - Max Switching: 125VA, 60W |
auf Bestellung 11 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
![]() |
AZ822-2C-24DSE | Hersteller : American Zettler |
![]() |
auf Bestellung 1450 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
AZ822-2C-24DSE | Hersteller : Zettler Components Company |
![]() |
auf Bestellung 10734 Stücke: Lieferzeit 14-21 Tag (e) |
|
