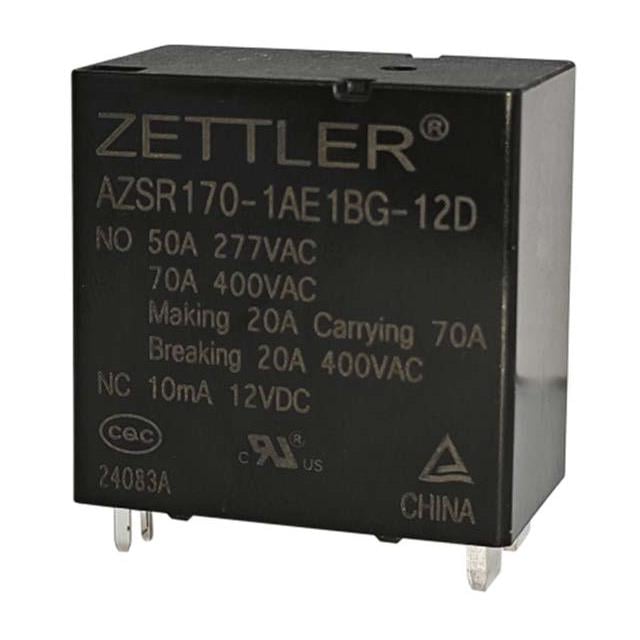

AZSR170-1A1BG-12D American Zettler
Hersteller: American ZettlerDescription: RELAY EV CHARGING DPST 70A 12V
Packaging: Box
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CQC, cURus, TUV
Relay Type: General Purpose
Coil Current: 205.8 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Nickel (AgNi)
Contact Form: DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current): 70 A
Switching Voltage: 600VAC - Max
Must Release Voltage: 4.8 VDC
Must Operate Voltage: 8.4 VDC
Operate Time: 20 ms
Release Time: 10 ms
Coil Insulation: Class F
Load - Max Switching: 42000VA
auf Bestellung 397 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 10.30 EUR |
| 10+ | 8.99 EUR |
| 25+ | 8.52 EUR |
| 50+ | 8.18 EUR |
| 100+ | 7.86 EUR |
| 250+ | 7.44 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AZSR170-1A1BG-12D American Zettler
Description: RELAY EV CHARGING DPST 70A 12V, Packaging: Box, Mounting Type: Through Hole, Coil Voltage: 12VDC, Operating Temperature: -40°C ~ 85°C, Termination Style: PC Pin, Approval Agency: CQC, cURus, TUV, Relay Type: General Purpose, Coil Current: 205.8 mA, Coil Type: Non Latching, Seal Rating: Sealed - Flux Protection, Contact Material: Silver Nickel (AgNi), Contact Form: DPST-NO/NC (1 Form A, 1 Form B), Contact Rating (Current): 70 A, Switching Voltage: 600VAC - Max, Must Release Voltage: 4.8 VDC, Must Operate Voltage: 8.4 VDC, Operate Time: 20 ms, Release Time: 10 ms, Coil Insulation: Class F, Load - Max Switching: 42000VA.
