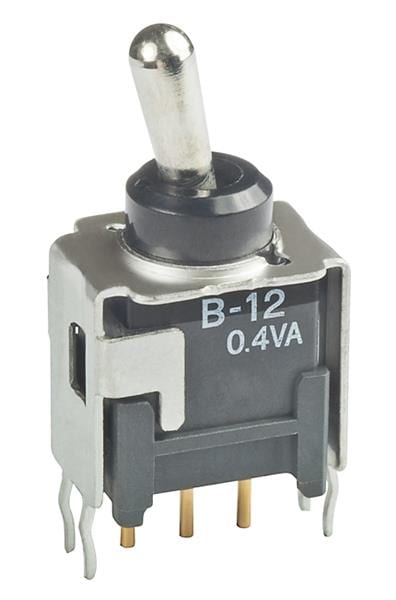

B12JB NKK Switches
Hersteller: NKK Switches
Description: SWITCH TOGGLE SPDT 0.4VA 28V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Through Hole
Circuit: SPDT
Switch Function: On-On
Operating Temperature: -30°C ~ 85°C
Termination Style: PC Pin
Illumination: Non-Illuminated
Bushing Thread: Unthreaded
Actuator Length: 6.30mm
Actuator Type: Standard Round
Part Status: Active
Voltage Rating - AC: 28 V
Voltage Rating - DC: 28 V
Description: SWITCH TOGGLE SPDT 0.4VA 28V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Through Hole
Circuit: SPDT
Switch Function: On-On
Operating Temperature: -30°C ~ 85°C
Termination Style: PC Pin
Illumination: Non-Illuminated
Bushing Thread: Unthreaded
Actuator Length: 6.30mm
Actuator Type: Standard Round
Part Status: Active
Voltage Rating - AC: 28 V
Voltage Rating - DC: 28 V
auf Bestellung 14274 Stücke:
Lieferzeit 21-28 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
3+ | 11.88 EUR |
10+ | 10.61 EUR |
25+ | 10.04 EUR |
50+ | 9.68 EUR |
100+ | 9.22 EUR |
250+ | 8.81 EUR |
500+ | 8.04 EUR |
1000+ | 7.69 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details B12JB NKK Switches
Category: Toggle Switches, Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; THT, Type of switch: toggle, Contacts configuration: SPDT, AC contacts rating @R: 0.1A / 28V AC, DC contacts rating @R: 0.1A / 28V DC, Max. contact resistance:: 50mΩ, Switching method: ON-ON, Number of positions: 2, Stable positions number: 2, Leads: for soldering; straight, Body dimensions: 6.8x8.8x13.1mm, Mechanical durability: 100000 cycles, Operating temperature: -30...85°C, Operating Force: 1.84N, Lever length: 6.3mm, Electrical life: 50000 cycles, Contact plating: gold-plated, Min. insulation resistance: 500MΩ, Terminal pitch: 2.54mm, Contact material: copper, Body material: polyamide, Mounting: THT, Actuator material: brass, Illumination: none, Manufacturer series: B, Number of terminals: 3, Poles number: 1, Kind of material: fiber glass reinforced, Kind of toggle: round.
