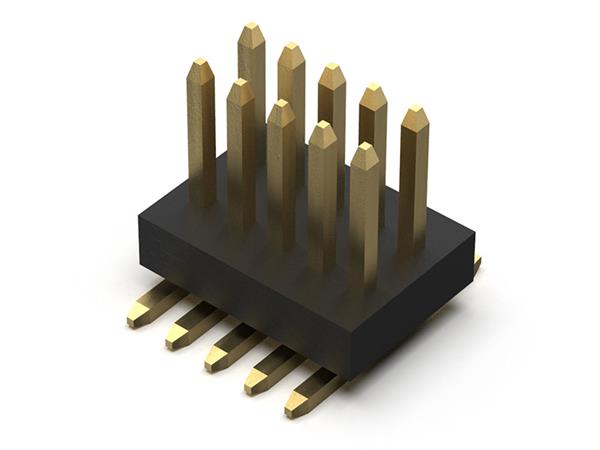

BB080-06-A-0-0270-0150-L-G GCT

Description: 06W, 0.8MMX1.2MM PITCH PIN HDR,, Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Unshrouded, Insulation Height: 0.039" (1.00mm), Contact Shape: Square, Contact Finish - Post: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Mating: Gold, Pitch - Mating: 0.031" (0.80mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Contact Length - Mating: 0.106" (2.70mm), Row Spacing - Mating: 0.047" (1.20mm), Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -40°C ~ 105°C, Style: Board to Board, Number of Rows: 2, Number of Positions: 6, Mounting Type: Surface Mount, Current Rating (Amps): 500mA, Voltage Rating: 250VAC/DC, Connector Type: Header, Packaging: Box.
