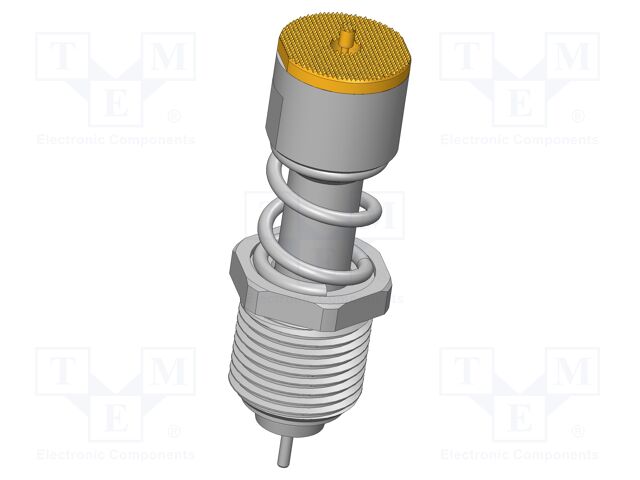

BCP-655 360 1800 A 100004M-53 INGUN
Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4.4mm; 125A; Ø: 18mm
Contact material: CuBe
Test accessories features: for testing battery cells
Contact plating: gold-plated
Mounting: M18x1.5
Blade tip shape: serrated
Type of test accessories: test needle
Operating temperature: -40...80°C
Max. contact resistance:: 5mΩ
Operational spring compression: 4.4mm
Maksimum spring compression: 5.5mm
Tip diameter: 18mm
Length: 68mm
Spring compression force: 100N
Current rating: 125A
Category: Contact Probes
Description: Test needle; Operational spring compression: 4.4mm; 125A; Ø: 18mm
Contact material: CuBe
Test accessories features: for testing battery cells
Contact plating: gold-plated
Mounting: M18x1.5
Blade tip shape: serrated
Type of test accessories: test needle
Operating temperature: -40...80°C
Max. contact resistance:: 5mΩ
Operational spring compression: 4.4mm
Maksimum spring compression: 5.5mm
Tip diameter: 18mm
Length: 68mm
Spring compression force: 100N
Current rating: 125A
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details BCP-655 360 1800 A 100004M-53 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4.4mm; 125A; Ø: 18mm, Contact material: CuBe, Test accessories features: for testing battery cells, Contact plating: gold-plated, Mounting: M18x1.5, Blade tip shape: serrated, Type of test accessories: test needle, Operating temperature: -40...80°C, Max. contact resistance:: 5mΩ, Operational spring compression: 4.4mm, Maksimum spring compression: 5.5mm, Tip diameter: 18mm, Length: 68mm, Spring compression force: 100N, Current rating: 125A.
