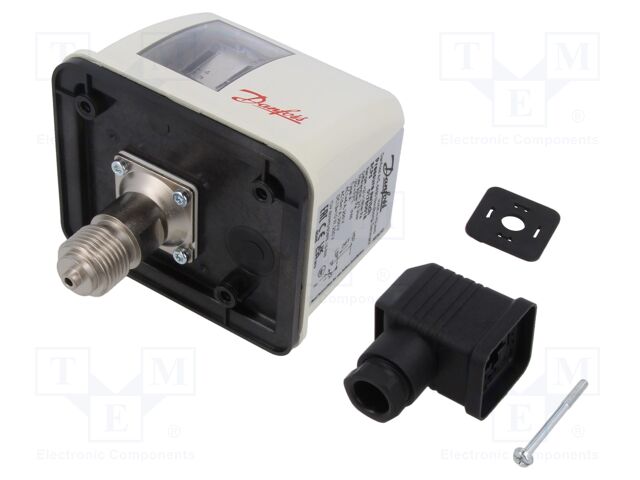

BCP5 DANFOSS

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFAEEFCF3734FD80D6&compId=BCP_EN.pdf?ci_sign=24af6a65857efb2217b52b885f06de41817551fb

Hersteller: DANFOSS
Category: Pressure switches
Description: Module: pressure switch; pressure; OUT 1: SPDT; 250VAC/1A; BCP
Mounting: G1/2 A
Type of module: pressure switch
Controlled parameter: pressure
Kind of output 1: SPDT
Operating temperature: -20...70°C
Body dimensions: 70x82x98mm
IP rating: IP65
Manufacturer series: BCP
Pressure setting range: 2...16bar
Operating pressure: max. 32bar
Sensors features: automatic reset
Output 1 electrical parameters: 250V AC / 1A
The programming method: adjusting screw
Regulation for output 1: adjustable hysteresis from 2 to 3,2 bar

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details BCP5 DANFOSS

Category: Pressure switches, Description: Module: pressure switch; pressure; OUT 1: SPDT; 250VAC/1A; BCP, Mounting: G1/2 A, Type of module: pressure switch, Controlled parameter: pressure, Kind of output 1: SPDT, Operating temperature: -20...70°C, Body dimensions: 70x82x98mm, IP rating: IP65, Manufacturer series: BCP, Pressure setting range: 2...16bar, Operating pressure: max. 32bar, Sensors features: automatic reset, Output 1 electrical parameters: 250V AC / 1A, The programming method: adjusting screw, Regulation for output 1: adjustable hysteresis from 2 to 3,2 bar.
