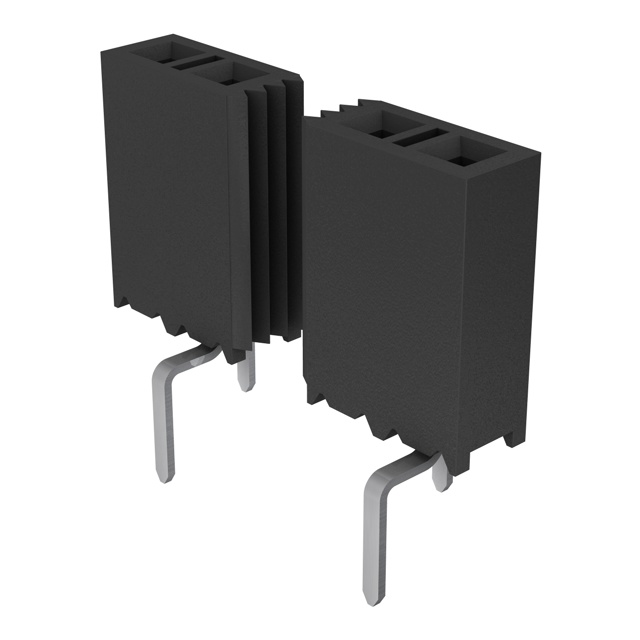

BCS-131-L-S-PE Samtec Inc.
Hersteller: Samtec Inc.
Description: CONN RCPT 31POS 0.1 GOLD PCB
Number of Rows: 1
Insulation Height: 0.290" (7.37mm)
Contact Length - Post: 0.128" (3.25mm)
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Female Socket
Operating Temperature: -55°C ~ 125°C
Style: Board to Board
Number of Positions: 31
Mounting Type: Through Hole
Current Rating (Amps): 4.6A per Contact
Voltage Rating: 475VAC
Connector Type: Receptacle, Pass Through
Packaging: Tube
| Anzahl | Preis |
|---|---|
| 3+ | 8.59 EUR |
| 10+ | 7.3 EUR |
| 100+ | 6.2 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BCS-131-L-S-PE Samtec Inc.
Description: CONN RCPT 31POS 0.1 GOLD PCB, Number of Rows: 1, Insulation Height: 0.290" (7.37mm), Contact Length - Post: 0.128" (3.25mm), Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Female Socket, Operating Temperature: -55°C ~ 125°C, Style: Board to Board, Number of Positions: 31, Mounting Type: Through Hole, Current Rating (Amps): 4.6A per Contact, Voltage Rating: 475VAC, Connector Type: Receptacle, Pass Through, Packaging: Tube.
Weitere Produktangebote BCS-131-L-S-PE
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
BCS-131-L-S-PE | Hersteller : Samtec |
Headers & Wire Housings .100" (2.54 mm) Tiger Claw Pass-through Socket Strip |
auf Bestellung 69 Stücke: Lieferzeit 10-14 Tag (e) |
