Produkte > GCT > BD060-10-A-N-0230-L-D
BD060-10-A-N-0230-L-D

BD060-10-A-N-0230-L-D GCT


pVersion=0046&contRep=ZT&docId=005056AB281E1EDEB1E98A67E5E580D6&compId=BC020-D.pdf?ci_sign=50c7868bf64d040ace2cee7ecf6207b1d8ff8d74 pVersion=0046&contRep=ZT&docId=005056AB281E1EDEB1E9BF8EF52C60D6&compId=BC-header.pdf?ci_sign=1b46cb36ae91c04b7aca7bb9f02f5d7baee24c2d Hersteller: GCT
Category: Pin headers

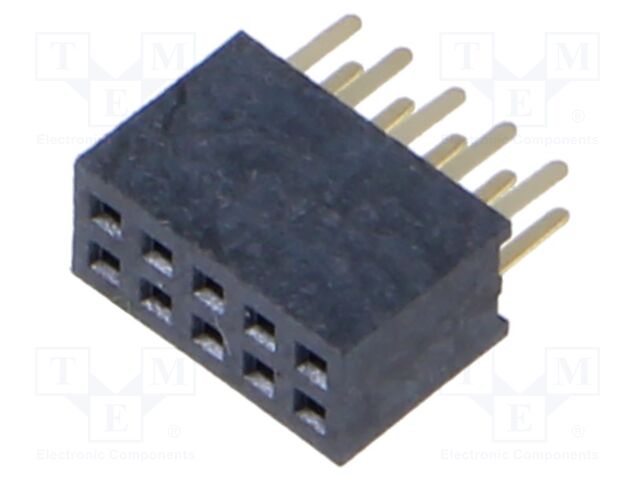

Description: Connector: pin strips; socket; female; PIN: 10; straight; THT; 2x5
Kind of connector: female
Contact plating: gold-plated
Connector pinout layout: 2x5
Type of connector: pin strips
Connector: socket
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 1.27mm
Number of pins: 10
Anzahl je Verpackung: 3000 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details BD060-10-A-N-0230-L-D GCT

Description: 10W, 1.27MM PITCH SOCKET, DIL, T, Packaging: Tube, Connector Type: Receptacle, Voltage Rating: 30VAC/DC, Current Rating (Amps): 1A per Contact, Mounting Type: Through Hole, Number of Positions: 10, Style: Board to Board, Operating Temperature: -40°C ~ 105°C, Contact Type: Female Socket, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Post: Gold, Part Status: Active, Contact Length - Post: 0.091" (2.30mm), Insulation Height: 0.134" (3.40mm), Row Spacing - Mating: 0.050" (1.27mm), Number of Rows: 2.

Weitere Produktangebote BD060-10-A-N-0230-L-D

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
BD060-10-A-N-0230-L-D Hersteller : GCT bd060.pdf?v=c92dc2be-8679-4bac-814f-071ec74a88fb Description: 10W, 1.27MM PITCH SOCKET, DIL, T
Packaging: Tube
Connector Type: Receptacle
Voltage Rating: 30VAC/DC
Current Rating (Amps): 1A per Contact
Mounting Type: Through Hole
Number of Positions: 10
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Part Status: Active
Contact Length - Post: 0.091" (2.30mm)
Insulation Height: 0.134" (3.40mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BD060-10-A-N-0230-L-D BD060-10-A-N-0230-L-D Hersteller : GCT pVersion=0046&contRep=ZT&docId=005056AB281E1EDEB1E98A67E5E580D6&compId=BC020-D.pdf?ci_sign=50c7868bf64d040ace2cee7ecf6207b1d8ff8d74 pVersion=0046&contRep=ZT&docId=005056AB281E1EDEB1E9BF8EF52C60D6&compId=BC-header.pdf?ci_sign=1b46cb36ae91c04b7aca7bb9f02f5d7baee24c2d Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 10; straight; THT; 2x5
Kind of connector: female
Contact plating: gold-plated
Connector pinout layout: 2x5
Type of connector: pin strips
Connector: socket
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 1.27mm
Number of pins: 10
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
