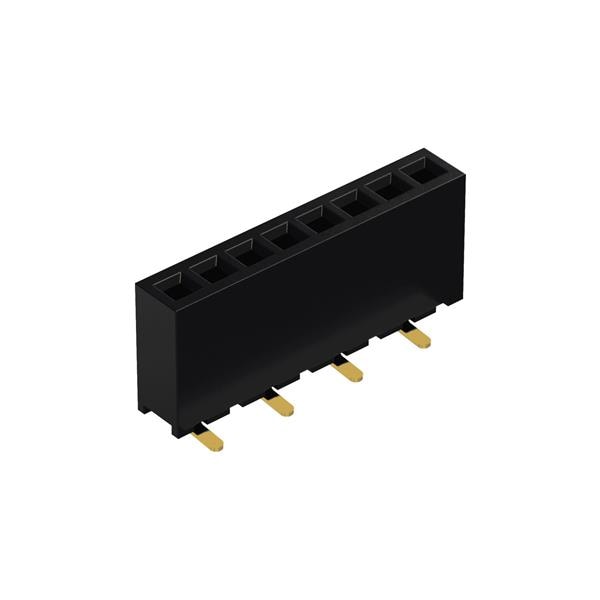

BD075-29-A-1-L-D GCT

Description: 29W, 1.27MM PITCH SOCKET, SIL, S, Number of Rows: 1, Insulation Height: 0.181" (4.60mm), Contact Finish - Post: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Female Socket, Operating Temperature: -40°C ~ 105°C, Style: Board to Board, Number of Positions: 29, Mounting Type: Surface Mount, Current Rating (Amps): 1A per Contact, Voltage Rating: 30VAC/DC, Connector Type: Receptacle, Bottom or Top Entry, Packaging: Tube.
