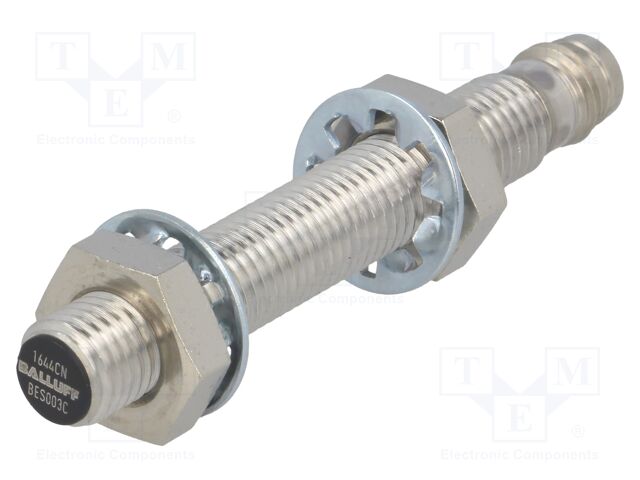

BES M08MI-PSC15B-S49G BALLUFF
Hersteller: BALLUFF
Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NO; 0÷1.5mm; 12÷30VDC; M8; IP67; 200mA
Number of pins: 3
Operating temperature: -25...70°C
Supply voltage: 12...30V DC
Manufacturer series: GLOBAL
Kind of forehead: embedded
Switch housing: M8
Plating material: nickel
Overall length: 59mm
Body material: brass
Switching frequency max: 1kHz
Connection: M8 male
Output configuration: PNP / NO
Max. operating current: 200mA
IP rating: IP67
Range: 0...1.5mm
Type of sensor: inductive
| Anzahl | Privatkunde |
|---|---|
| 3+ | 32.06 EUR |
| 5+ | 29.99 EUR |
| 10+ | 29.37 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BES M08MI-PSC15B-S49G BALLUFF
Category: DC Cylindrical Inductive Sensors, Description: Sensor: inductive; OUT: PNP / NO; 0÷1.5mm; 12÷30VDC; M8; IP67; 200mA, Number of pins: 3, Operating temperature: -25...70°C, Supply voltage: 12...30V DC, Manufacturer series: GLOBAL, Kind of forehead: embedded, Switch housing: M8, Plating material: nickel, Overall length: 59mm, Body material: brass, Switching frequency max: 1kHz, Connection: M8 male, Output configuration: PNP / NO, Max. operating current: 200mA, IP rating: IP67, Range: 0...1.5mm, Type of sensor: inductive.
