Produkte > BALLUFF > BES M18ME-PSC80B-S04G-003

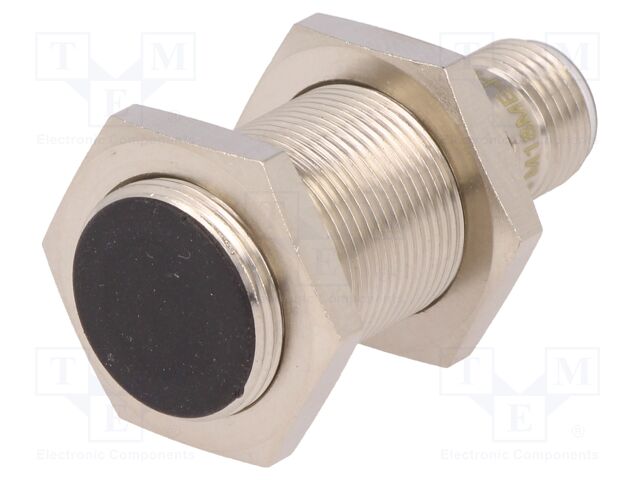

BES M18ME-PSC80B-S04G-003

BES M18ME-PSC80B-S04G-003 BALLUFF


pVersion=0046&contRep=ZT&docId=005056AB752F1ED6B8C40B703F413E28&compId=GLOBAL-EN.pdf?ci_sign=1b68890b9df8f49915c80491527acc1affabcc25 pVersion=0046&contRep=ZT&docId=005056AB752F1ED6B8C40B703F40DE28&compId=GLOBAL-DE.pdf?ci_sign=0fb7f354eb2c5f66f0a3874afa256f462b575d9c Hersteller: BALLUFF
Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NO; 0÷8mm; 10÷30VDC; M18; IP67; 200mA
Type of sensor: inductive
Output configuration: PNP / NO
Range: 0...8mm
Supply voltage: 10...30V DC
Switch housing: M18
Connection: connector M12
IP rating: IP67
Max. operating current: 200mA
Operating temperature: -25...70°C
Kind of forehead: embedded
Body material: brass
Switching frequency max: 150Hz
Overall length: 44.5mm
Body plating: nickel
Number of pins: 3
Manufacturer series: GLOBAL
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details BES M18ME-PSC80B-S04G-003 BALLUFF

Category: DC Cylindrical Inductive Sensors, Description: Sensor: inductive; OUT: PNP / NO; 0÷8mm; 10÷30VDC; M18; IP67; 200mA, Type of sensor: inductive, Output configuration: PNP / NO, Range: 0...8mm, Supply voltage: 10...30V DC, Switch housing: M18, Connection: connector M12, IP rating: IP67, Max. operating current: 200mA, Operating temperature: -25...70°C, Kind of forehead: embedded, Body material: brass, Switching frequency max: 150Hz, Overall length: 44.5mm, Body plating: nickel, Number of pins: 3, Manufacturer series: GLOBAL, Anzahl je Verpackung: 1 Stücke.
