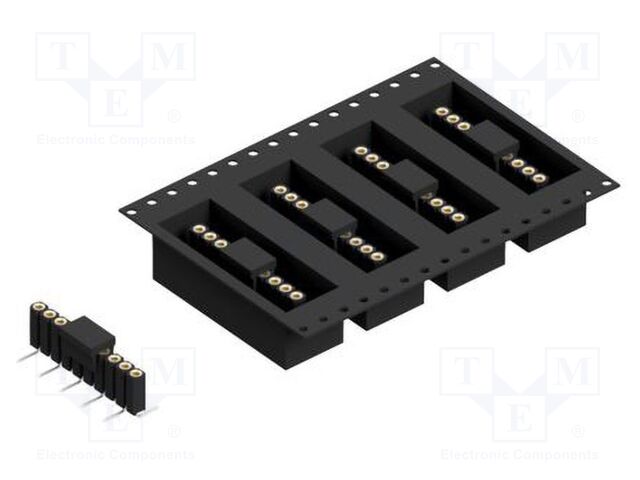

BL 15 SMD 089 10 B TR Fischer Elektronik
Hersteller: Fischer ElektronikDescription: for 0.635 mm and up to 0.85 mm
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 150VDC
Mounting Type: Surface Mount
Number of Positions: 10
Operating Temperature: -40°C ~ 163°C
Contact Type: Precision
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Number of Rows: 1
Current Rating (Amps): 3A
Insulation Height: 0.276" (7.00mm)
auf Bestellung 1200 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 400+ | 5.56 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BL 15 SMD 089 10 B TR Fischer Elektronik
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 10; BL 15 SMD; 3A; 150V, Connector: socket, Electrical mounting: SMT, Kind of connector: female, Contact plating: gold-plated, Connector variant: pick and place; precision; turned contacts, Type of connector: pin strips, Kind of package: reel, Spatial orientation: straight, Flammability rating: UL94V-0, Operating temperature: -40...163°C, Plating thickness: 0.75µm, Contacts pitch: 2.54mm, Lead length: 4mm, Overall length: 8.6mm, Number of pins: 10, Current rating: 3A, Rated voltage: 150V, Connector pinout layout: 1x10, Contact material: beryllium copper, Manufacturer series: BL 15 SMD, Anzahl je Verpackung: 400 Stücke.
Weitere Produktangebote BL 15 SMD 089 10 B TR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
BL 15 SMD 089 10 B TR | Hersteller : Fischer Elektronik |
Conn Socket Strip F 10 POS 2,54mm Solder Gold Surface Mount |
Produkt ist nicht verfügbar |
|
 |
BL15SMD08910BTR | Hersteller : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; socket; female; PIN: 10; BL 15 SMD; 3A; 150V Connector: socket Electrical mounting: SMT Kind of connector: female Contact plating: gold-plated Connector variant: pick and place; precision; turned contacts Type of connector: pin strips Kind of package: reel Spatial orientation: straight Flammability rating: UL94V-0 Operating temperature: -40...163°C Plating thickness: 0.75µm Contacts pitch: 2.54mm Lead length: 4mm Overall length: 8.6mm Number of pins: 10 Current rating: 3A Rated voltage: 150V Connector pinout layout: 1x10 Contact material: beryllium copper Manufacturer series: BL 15 SMD Anzahl je Verpackung: 400 Stücke |
Produkt ist nicht verfügbar |
|
|
|
BL15SMD08910BTR | Hersteller : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; socket; female; PIN: 10; BL 15 SMD; 3A; 150V Connector: socket Electrical mounting: SMT Kind of connector: female Contact plating: gold-plated Connector variant: pick and place; precision; turned contacts Type of connector: pin strips Kind of package: reel Spatial orientation: straight Flammability rating: UL94V-0 Operating temperature: -40...163°C Plating thickness: 0.75µm Contacts pitch: 2.54mm Lead length: 4mm Overall length: 8.6mm Number of pins: 10 Current rating: 3A Rated voltage: 150V Connector pinout layout: 1x10 Contact material: beryllium copper Manufacturer series: BL 15 SMD |
Produkt ist nicht verfügbar |
