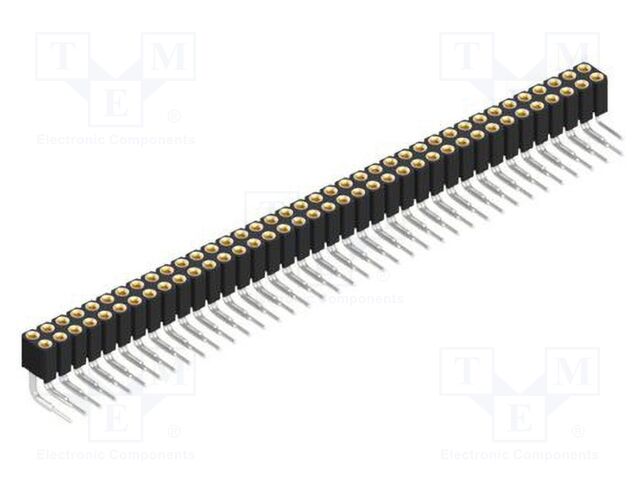

BLY 4 76 Fischer Elektronik
Hersteller: Fischer ElektronikDescription: for 0.5 mm and up to 0.56 mm
Packaging: Bulk
Connector Type: Header
Voltage Rating: 100VDC
Current Rating (Amps): 2.5A
Mounting Type: Through Hole
Number of Positions: 76
Operating Temperature: -40°C ~ 163°C
Contact Type: Precision
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.165" (4.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 10+ | 22.31 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BLY 4 76 Fischer Elektronik
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 76; BLY 4; 2.5A; 100V, Type of connector: pin strips, Connector: socket, Kind of connector: female, Number of pins: 76, Manufacturer series: BLY 4, Current rating: 2.5A, Rated voltage: 100V, Spatial orientation: angled, Electrical mounting: THT, Contacts pitch: 2mm, Connector pinout layout: 2x38, Contact plating: gold-plated, Connector variant: precision; turned contacts, Row pitch: 2mm, Flammability rating: UL94V-0, Height: 4mm, Plating thickness: 0.254µm, Contact material: beryllium copper, Overall length: 7.3mm, Operating temperature: -40...163°C, Lead length: 3.3mm, Anzahl je Verpackung: 10 Stücke.
Weitere Produktangebote BLY 4 76
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
BLY476 | Hersteller : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; socket; female; PIN: 76; BLY 4; 2.5A; 100V Type of connector: pin strips Connector: socket Kind of connector: female Number of pins: 76 Manufacturer series: BLY 4 Current rating: 2.5A Rated voltage: 100V Spatial orientation: angled Electrical mounting: THT Contacts pitch: 2mm Connector pinout layout: 2x38 Contact plating: gold-plated Connector variant: precision; turned contacts Row pitch: 2mm Flammability rating: UL94V-0 Height: 4mm Plating thickness: 0.254µm Contact material: beryllium copper Overall length: 7.3mm Operating temperature: -40...163°C Lead length: 3.3mm Anzahl je Verpackung: 10 Stücke |
Produkt ist nicht verfügbar |
|
|
|
BLY476 | Hersteller : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; socket; female; PIN: 76; BLY 4; 2.5A; 100V Type of connector: pin strips Connector: socket Kind of connector: female Number of pins: 76 Manufacturer series: BLY 4 Current rating: 2.5A Rated voltage: 100V Spatial orientation: angled Electrical mounting: THT Contacts pitch: 2mm Connector pinout layout: 2x38 Contact plating: gold-plated Connector variant: precision; turned contacts Row pitch: 2mm Flammability rating: UL94V-0 Height: 4mm Plating thickness: 0.254µm Contact material: beryllium copper Overall length: 7.3mm Operating temperature: -40...163°C Lead length: 3.3mm |
Produkt ist nicht verfügbar |
