BM 971CS BM GROUP
Hersteller: BM GROUP
Category: Terminal blocks

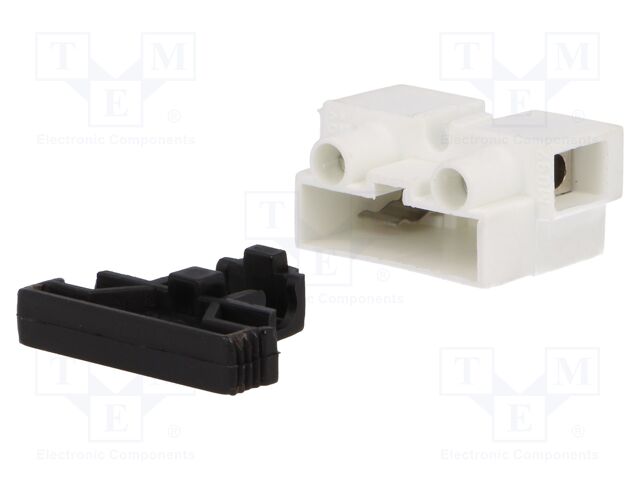

Description: Connector: terminal block; 450V; with wire protector; white
Rated voltage: 450V
Electrical mounting: screw terminal
Colour: white
Wire cross-section: 2.5mm2
Number of ways: 1
Number of terminals: 2
Width: 27mm
Contact plating: nickel plated
Body material: polyamide
Type of connector: terminal block
Flammability rating: UL94V-2
Operating temperature: max. 100°C
Fuse size: 5x20mm
Length: 12.85mm
Height: 22.7mm
Conform to the norm: CE; CSA; UL
Connector variant: with wire protector
Contact material: brass
Mechanical mounting: for cable; for panel mounting; mounting holes
Caution!: fuses not included
Design: fuse x1
Anzahl je Verpackung: 1 Stücke
Category: Terminal blocks
Description: Connector: terminal block; 450V; with wire protector; white
Rated voltage: 450V
Electrical mounting: screw terminal
Colour: white
Wire cross-section: 2.5mm2
Number of ways: 1
Number of terminals: 2
Width: 27mm
Contact plating: nickel plated
Body material: polyamide
Type of connector: terminal block
Flammability rating: UL94V-2
Operating temperature: max. 100°C
Fuse size: 5x20mm
Length: 12.85mm
Height: 22.7mm
Conform to the norm: CE; CSA; UL
Connector variant: with wire protector
Contact material: brass
Mechanical mounting: for cable; for panel mounting; mounting holes
Caution!: fuses not included
Design: fuse x1
Anzahl je Verpackung: 1 Stücke
auf Bestellung 198 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 28+ | 2.63 EUR |
| 30+ | 2.39 EUR |
| 200+ | 2.12 EUR |
| 1000+ | 1.84 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BM 971CS BM GROUP
Category: Terminal blocks, Description: Connector: terminal block; 450V; with wire protector; white, Rated voltage: 450V, Electrical mounting: screw terminal, Colour: white, Wire cross-section: 2.5mm2, Number of ways: 1, Number of terminals: 2, Width: 27mm, Contact plating: nickel plated, Body material: polyamide, Type of connector: terminal block, Flammability rating: UL94V-2, Operating temperature: max. 100°C, Fuse size: 5x20mm, Length: 12.85mm, Height: 22.7mm, Conform to the norm: CE; CSA; UL, Connector variant: with wire protector, Contact material: brass, Mechanical mounting: for cable; for panel mounting; mounting holes, Caution!: fuses not included, Design: fuse x1, Anzahl je Verpackung: 1 Stücke.
