Produkte > BM GROUP > BM 972CS

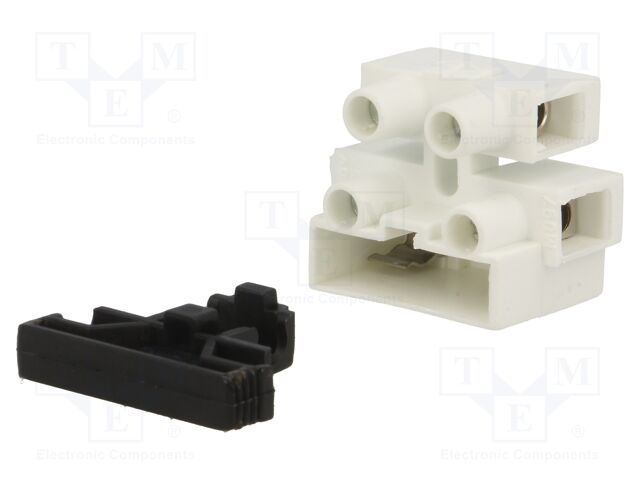

BM 972CS
BM 972CS
BM 972CSBM 972CS

BM 972CS BM GROUP


Hersteller: BM GROUP
Category: Terminal blocks
Description: Connector: terminal block; 450V; with wire protector; white
Rated voltage: 450V
Electrical mounting: screw terminal
Wire cross-section: 2.5mm2
Number of ways: 2
Connector variant: with wire protector
Flammability rating: UL94V-2
Colour: white
Design: fuse x1
Operating temperature: max. 100°C
Mechanical mounting: for cable; for panel mounting; mounting holes
Length: 22.05mm
Body material: polyamide
Fuse size: 5x20mm
Type of connector: terminal block
Width: 27mm
Caution!: fuses not included
Conform to the norm: CE; CSA; UL
Height: 22.7mm
Contact plating: nickel plated
Number of terminals: 4
Contact material: brass
auf Bestellung 64 Stücke:
Lieferzeit 14-21 Tag (e)
AnzahlPrivatkunde
19+4.62 EUR
22+4.05 EUR
Mindestbestellmenge: 19 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details BM 972CS BM GROUP

Category: Terminal blocks, Description: Connector: terminal block; 450V; with wire protector; white, Rated voltage: 450V, Electrical mounting: screw terminal, Wire cross-section: 2.5mm2, Number of ways: 2, Connector variant: with wire protector, Flammability rating: UL94V-2, Colour: white, Design: fuse x1, Operating temperature: max. 100°C, Mechanical mounting: for cable; for panel mounting; mounting holes, Length: 22.05mm, Body material: polyamide, Fuse size: 5x20mm, Type of connector: terminal block, Width: 27mm, Caution!: fuses not included, Conform to the norm: CE; CSA; UL, Height: 22.7mm, Contact plating: nickel plated, Number of terminals: 4, Contact material: brass.
