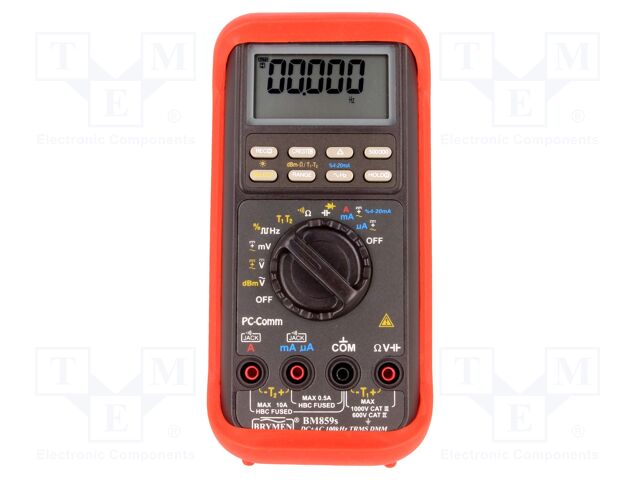

BM859S BRYMEN
Hersteller: BRYMENCategory: Portable digital multimeters
Description: Digital multimeter; RS232; LCD; (50000); Bargraph: 42segm.60x/s
Protection: anti-overload OPP
Battery/ rechargeable battery: battery 6LR61 9V x1
Power supply: battery 6LR61 9V x1
Type of meter: digital multimeter
Interface: RS232
Standard equipment: holster; temperature probe; test leads
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Optional equipment: KITBRUA-85XA software
Kind of display used: LCD
True effective value measurement: True RMS AC
Bargraph: 42 segm. 60x/s
Temperature measuring range: -50...1000°C
Measures dBm: -11.76...54.25dBm
Measures 4-20mA current loop: 0...100%
AC current measuring range: 0.01...500µA; 5mA; 50mA; 0.5A; 5A; 10A; (20A <30s)
Capacitance measuring range: 10pF...50nF; 500nF; 5µF; 50µF; 500µF; 9.999mF
DC current measuring range: 10nA...500µA; 5mA; 50mA; 500mA; 5A; 10A; 20A < 30s
DC voltage measuring range: 0.001...500mV; 5V; 50V; 500V; 1kV
AC voltage measuring range: 0.001...500mV; 5V; 50V; 500V; 1kV
Diode test: 0.8mA @3.5V
Frequency measuring accuracy: ±(0.002%+4 digit)
Resistance measuring range: 10mΩ...500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
DC voltage measuring accuracy: ±(0.04% + 2 digit)
Dimensions (W x H x D): 97x198x55mm
DC current measuring accuracy: ±(0.1% + 20 digit)
Resistance measuring accuracy: ±(0.07%+2 digit)
Duty cycle factor: 0.1...99.9%
Temperature measurement accuracy: ±(0.3% + 1 digit)
AC voltage measuring accuracy: ±(0.8% + 20 digit)
AC current measuring accuracy: ±(0.7% + 50 digit)
Capacitance measuring accuracy: ±(0.8%+ 3 digit)
Frequency measuring range: 5Hz...2MHz; 10...200kHz
Weight with battery: 260g
Measuring instrument features: automatic power-off; HOLD function; holster and splashproof enclosure made of non-flammable plastic; MIN/MAX, MAX-MIN, MEAN function; REL function
Sampling: 5x/s
Display parameters: (50000)
Duty cycle factor measurement accuracy: 3d/kHz + 2 digits
Measurement: 4-20mA current loop; AC current; AC voltage; capacitance; DC current; DC voltage; differential temperature; duty cycle; frequency; resistance; temperature
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Continuity test: acoustic indication; <20Ω
Anzahl je Verpackung: 1 Stücke
auf Bestellung 8 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 282 EUR |
