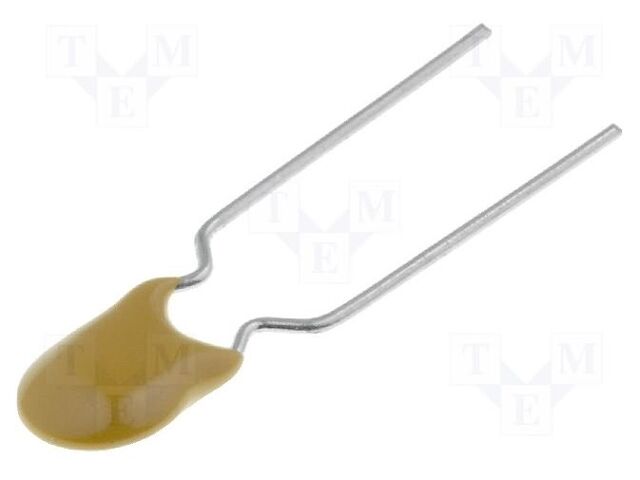

BX155

BX155 ECE

pVersion=0046&contRep=ZT&docId=E1C04EEB765A4AF1A6F5005056AB5A8F&compId=K1008322249.pdf?ci_sign=185dd82276a8242cd62467d5cebafb59e4cae839 Hersteller: ECE
Category: THT Polymer Fuses
Description: Fuse: PTC polymer; 1.55A; THT; Ø0.51x7.6mm
Type of fuse: PTC polymer
Current rating: 1.55A
Switched current: 2.7A
Max. voltage: 16V DC
Mounting: THT
Power: 0.7W
Min. resistance: 30mΩ
Max resistance: 0.12Ω
A dimension: 6.9mm
B dimension: 11.7mm
C dimension: 5.1mm
D dimension: 7.6mm
E dimension: 3mm
F dimension: 0.8mm
Operating temperature: -40...85°C
Leads dimensions: Ø0.51x7.6mm
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details BX155 ECE

Category: THT Polymer Fuses, Description: Fuse: PTC polymer; 1.55A; THT; Ø0.51x7.6mm, Type of fuse: PTC polymer, Current rating: 1.55A, Switched current: 2.7A, Max. voltage: 16V DC, Mounting: THT, Power: 0.7W, Min. resistance: 30mΩ, Max resistance: 0.12Ω, A dimension: 6.9mm, B dimension: 11.7mm, C dimension: 5.1mm, D dimension: 7.6mm, E dimension: 3mm, F dimension: 0.8mm, Operating temperature: -40...85°C, Leads dimensions: Ø0.51x7.6mm.
