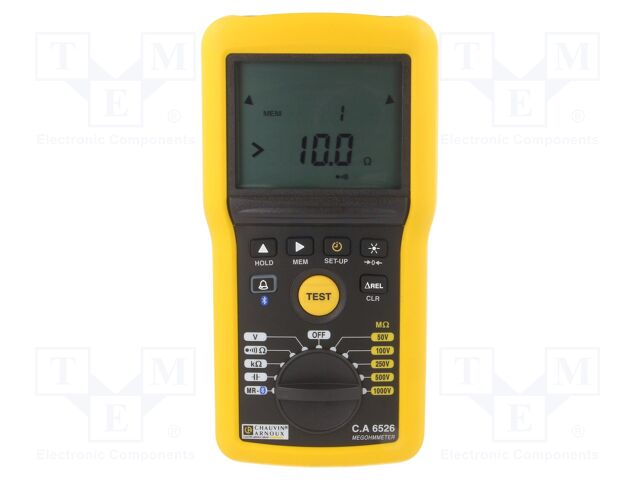

C.A 6526 CHAUVIN ARNOUX
Hersteller: CHAUVIN ARNOUX
Category: Insulation Resistance Meters
Description: Meter: insulation resistance; LCD; (4000); VAC: 300mV÷400V,700V
IP rating: IP54
Kind of display used: LCD
Bargraph: yes
Capacitance measuring range: 0.1...400nF; 4µF; 10µF
Body dimensions: 211x108x60mm
DC voltage measuring range: 300mV...400V; 700V
AC voltage measuring range: 300mV...400V; 700V
DC voltage measuring accuracy: ±(3% + 2 digit)
Insulation resistance measuring accuracy: ±(3% + 2digit)
Resistance measuring accuracy: ±(3%+2 digit)
Continuity test: <10Ω; <100Ω
Test voltage: 50V; 100V; 250V; 500V; 1kV
Weight without batteries: 850g
Measurement memory: 1300
Resistance measuring range: 4kΩ; 40kΩ; 400kΩ; 1MΩ
Insulation resistance measuring ranges: 10...999kΩ; 4MΩ; 40MΩ; 400MΩ; 4GΩ; 40GΩ; 200GΩ
Display parameters: (4000)
Conform to the norm: CAT IV 600V; EN 61243-3:2010; IEC 61010-1; IEC 61010-2-030; IEC 61326-1
Power supply: battery LR6 AA 1,5V x6
Battery/ rechargeable battery: battery LR6 AA 1,5V x6
Interface: Bluetooth
Standard equipment: carrying case; crocodile clip; test leads; test probe x1
Software: included
Type of meter: insulation resistance
