C.A 703

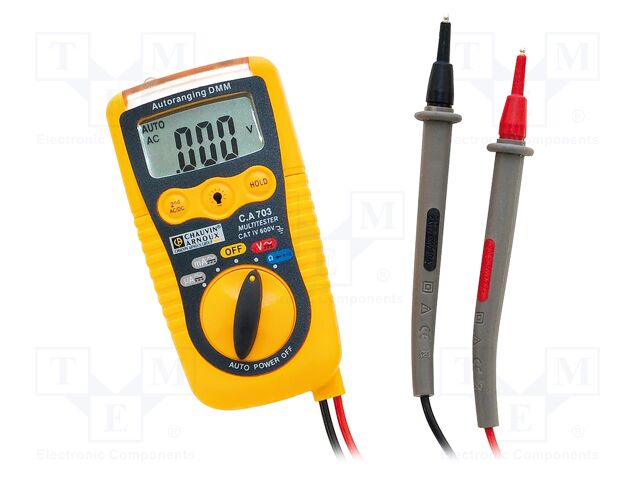

C.A 703 CHAUVIN ARNOUX

pVersion=0046&contRep=ZT&docId=005056AB752F1ED7AFA936485D85EA15&compId=CA-703_DS.PDF?ci_sign=c69bba11852f7d6da5e962d7b20df506f3c3b42d pVersion=0046&contRep=ZT&docId=005056AB752F1ED7AEE3B8E8D444EA14&compId=CA-703_M.PDF?ci_sign=02983152b8804ffa3f9ec2156354fc573aa30533 Hersteller: CHAUVIN ARNOUX
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (1999); VDC: 200mV,2V,20V,200V,600V
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (1999)
DC voltage measuring range: 200mV; 2V; 20V; 200V; 600V
DC voltage measuring accuracy: ±(0.5% + 3 digit)
AC voltage measuring range: 2V; 20V; 200V; 600V
AC voltage measuring accuracy: ±(1% + 8 digit)
DC current measuring range: 0.2mA; 2mA; 20mA; 200mA
DC current measuring accuracy: ±(2% + 8 digit)
AC current measuring range: 0.2mA; 2mA; 20mA; 200mA
AC current measuring accuracy: ±(2.5% + 10 digit)
Resistance measuring range: 200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ
Continuity test: acoustic indication; <60Ω
Standard equipment: fixed test leads
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 55x104x32.5mm
Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; HOLD function; low battery indicator; permanently connected test leads; pocket size
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Measurement: AC current; AC voltage; continuity; DC current; DC voltage; resistance
Diode test: 1mA @1.5V
Power supply: battery LR03 AAA 1,5V x2
Resistance measuring accuracy: ±(0.08%+5 digit)
Additional functions: torch
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+89.23 EUR
3+86.73 EUR
Im Einkaufswagen  Stück im Wert von  UAH
