CA14NV12,5-47K A2020

CA14NV12,5-47K A2020 ACP

pVersion=0046&contRep=ZT&docId=005056AB281E1FD09F9D6303DA2EE0E1&compId=ACP-CA14.pdf?ci_sign=2d1197376f5afad4f49a77fc39b2935d96f7af4e Hersteller: ACP
Category: Single turn THT trimmers

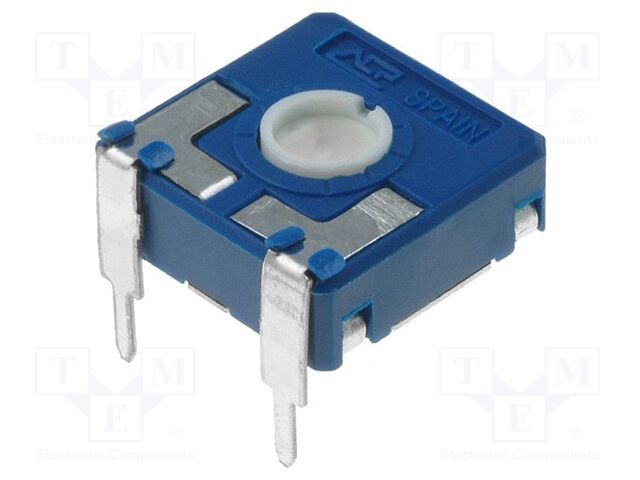

Description: Potentiometer: mounting; 47kΩ; 250mW; ±20%; linear; carbon
Operating temperature: -25...70°C
Track material: carbon
Characteristics: linear
Type of potentiometer: mounting
Mounting: THT
Potentiometer standard: 14mm
Body dimensions: 14x14x6mm
Power: 0.25W
Tolerance: ±20%
Torque: max. 2.5Ncm
Electrical rotation angle: 245 ±20°
Max. operating voltage: 250V DC
Mechanical rotation angle: 265 ±5°
Resistance: 47kΩ
Mechanical durability: 1000 cycles
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details CA14NV12,5-47K A2020 ACP

Category: Single turn THT trimmers, Description: Potentiometer: mounting; 47kΩ; 250mW; ±20%; linear; carbon, Operating temperature: -25...70°C, Track material: carbon, Characteristics: linear, Type of potentiometer: mounting, Mounting: THT, Potentiometer standard: 14mm, Body dimensions: 14x14x6mm, Power: 0.25W, Tolerance: ±20%, Torque: max. 2.5Ncm, Electrical rotation angle: 245 ±20°, Max. operating voltage: 250V DC, Mechanical rotation angle: 265 ±5°, Resistance: 47kΩ, Mechanical durability: 1000 cycles.
