Produkte > IGUS > CF78.UL.15.03
CF78.UL.15.03

CF78.UL.15.03 IGUS


pVersion=0046&contRep=ZT&docId=005056AB752F1ED7BDD94BE75488AA18&compId=CF78EN.pdf?ci_sign=13dc480e67f72e1286d1693f3738976fa426d9a4 Hersteller: IGUS
Category: Cables for Power Chains - Shielded

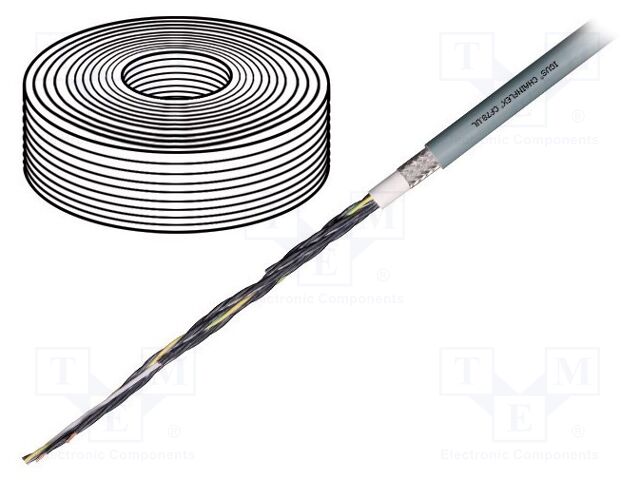

Description: Wire: control cable; chainflex® CF78.UL; 3G1.5mm2; grey; stranded
Type of wire: control cable
Kind of wire: chainflex® CF78.UL
Insulation colour: grey
Core structure: stranded
Kind of core: Cu
Operating temperature: -35...80°C
Shield structure: shielded; tinned copper braid
Wire insulation material: PUR
Cable external diameter: 9.5mm
Number of cores: 3
Rated voltage: 300V; 500V
Core section: 1.5mm2
Core marking: black, numbered + ground wire
CPR standard: no classification
Earth core: yellow-green
Resistance to: coolant; mechanical stesses; moisture; most of oils; UV rays
Cable application: control for machines; indoor; industrial applications; outdoor; power chain; rapid handling systems
Kind of material: halogen free; no flame propagation
Conform to the norm: UL 11323; UL 21223
Information: The UL Label and Mark on full factory packaging only
Cable structure: 3G1.5mm2
Cable features: self-supporting
Anzahl je Verpackung: 5 Stücke
auf Bestellung 39 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
10+10.15 EUR
50+9.77 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details CF78.UL.15.03 IGUS

Category: Cables for Power Chains - Shielded, Description: Wire: control cable; chainflex® CF78.UL; 3G1.5mm2; grey; stranded, Type of wire: control cable, Kind of wire: chainflex® CF78.UL, Insulation colour: grey, Core structure: stranded, Kind of core: Cu, Operating temperature: -35...80°C, Shield structure: shielded; tinned copper braid, Wire insulation material: PUR, Cable external diameter: 9.5mm, Number of cores: 3, Rated voltage: 300V; 500V, Core section: 1.5mm2, Core marking: black, numbered + ground wire, CPR standard: no classification, Earth core: yellow-green, Resistance to: coolant; mechanical stesses; moisture; most of oils; UV rays, Cable application: control for machines; indoor; industrial applications; outdoor; power chain; rapid handling systems, Kind of material: halogen free; no flame propagation, Conform to the norm: UL 11323; UL 21223, Information: The UL Label and Mark on full factory packaging only, Cable structure: 3G1.5mm2, Cable features: self-supporting, Anzahl je Verpackung: 5 Stücke.
