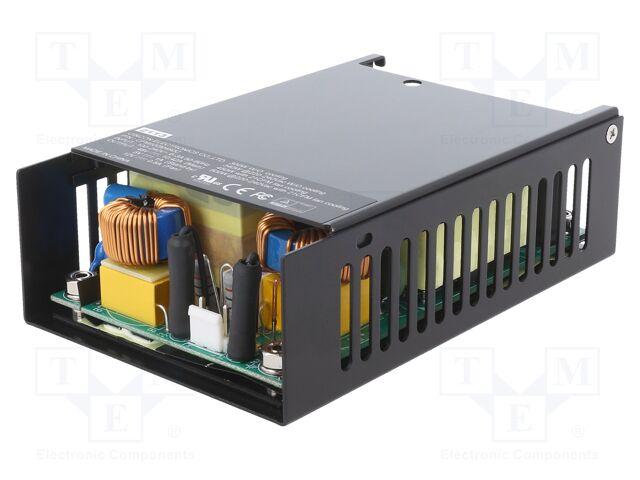

CFM500M480C CINCON
Hersteller: CINCONCategory: Open Frame Power Supplies
Description: Power supply: switching; open; 390/500W; 80÷264VDC; 80÷264VAC
Power: 390/500W
Application: medical applications
Kind of power supply: open
Type of power supply: switching
Caution!: the maximum current only with additional cooling
Operating temperature: -40...85°C
Body dimensions: 136x87x42.5mm
Power consumption without load: <0.5W
Number of outputs: 1
Output voltage: 48V DC
Supply voltage: 80...264V AC; 80...264V DC
Output current: 8.54A
Efficiency: 94%
Insulation voltage: 4kV
Case: 5"x3"
Switching frequency: 65kHz
Additional functions: active PFC; auxiliary DC output 5V/1A; auxiliary DC output 12V/500mA; PFC
Protection: overheating OTP; short circuit protection SCP; voltage drop BOP
Manufacturer series: CFM500M
Electrical connection: connector with snap lock
Power supply unit features: cooling passive
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 165.91 EUR |
| 5+ | 152.74 EUR |
| 20+ | 131.67 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details CFM500M480C CINCON
Description: AC/DC CONVERTER 48V 320W, Power (Watts): 320W (500W Forced Air), Features: Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input, Packaging: Box, Size / Dimension: 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm), Mounting Type: Chassis Mount, Voltage - Input: 85 ~ 264 VAC, Type: Enclosed, Operating Temperature: -30°C ~ 85°C (With Derating), Applications: Household Appliances, Medical, Approval Agency: ANSI/AAMI, ES, IEC, Efficiency: 94%, Voltage - Output 1: 48V, Part Status: Active, Number of Outputs: 1, Voltage - Isolation: 4 kV, Standard Number: 60335-1; 60601-1, Current - Output 1: 6.67 A.
Weitere Produktangebote CFM500M480C nach Preis ab 165.91 EUR bis 280.42 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CFM500M480C | Hersteller : CINCON |
Category: Open Frame Power Supplies Description: Power supply: switching; open; 390/500W; 80÷264VDC; 80÷264VAC Power: 390/500W Application: medical applications Kind of power supply: open Type of power supply: switching Caution!: the maximum current only with additional cooling Operating temperature: -40...85°C Body dimensions: 136x87x42.5mm Power consumption without load: <0.5W Number of outputs: 1 Output voltage: 48V DC Supply voltage: 80...264V AC; 80...264V DC Output current: 8.54A Efficiency: 94% Insulation voltage: 4kV Case: 5"x3" Switching frequency: 65kHz Additional functions: active PFC; auxiliary DC output 5V/1A; auxiliary DC output 12V/500mA; PFC Protection: overheating OTP; short circuit protection SCP; voltage drop BOP Manufacturer series: CFM500M Electrical connection: connector with snap lock Power supply unit features: cooling passive |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
 |
CFM500M480C | Hersteller : Cincon Electronics Co. LTD |
Description: AC/DC CONVERTER 48V 320W Power (Watts): 320W (500W Forced Air) Features: Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input Packaging: Box Size / Dimension: 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) Mounting Type: Chassis Mount Voltage - Input: 85 ~ 264 VAC Type: Enclosed Operating Temperature: -30°C ~ 85°C (With Derating) Applications: Household Appliances, Medical Approval Agency: ANSI/AAMI, ES, IEC Efficiency: 94% Voltage - Output 1: 48V Part Status: Active Number of Outputs: 1 Voltage - Isolation: 4 kV Standard Number: 60335-1; 60601-1 Current - Output 1: 6.67 A |
auf Bestellung 10 Stücke: Lieferzeit 10-14 Tag (e) |
|
