Produkte > IGUS > CFROBOT3.02.04.02
CFROBOT3.02.04.02

CFROBOT3.02.04.02 IGUS


pVersion=0046&contRep=ZT&docId=005056AB752F1ED7BDF3E561B34B2A18&compId=CFROBOT3.EN.pdf?ci_sign=c5fca083ff8bd3e951b9acbda83528325d23778c Hersteller: IGUS
Category: Cables for Power Chains - Shielded

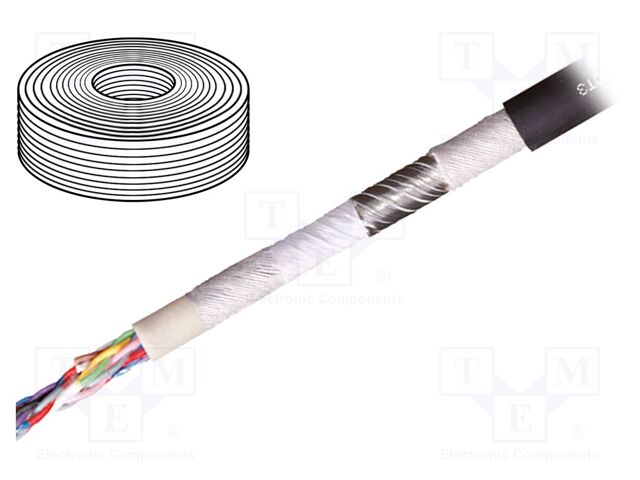

Description: Wire: data transmission; chainflex® CFROBOT3; 4x2x0.25mm2; Cu
Operating temperature: -25...80°C
Conform to the norm: UL 10497; UL 20911
Type of wire: data transmission
Wire insulation material: PUR
Insulation colour: dark blue
Kind of core: Cu
Resistance to: coolant; mechanical stesses; moisture; most of oils; temperature; torsion; UV rays
Kind of wire: chainflex® CFROBOT3
Shield structure: shielded; tinned copper braid
Cable features: self-supporting; twisted pair conductors
Number of cores: 8
No. of pairs: 2
Core marking: coloured
Cable application: data transmission; indoor; industrial applications; outdoor; robotics
Cable external diameter: 9mm
Core structure: stranded
Information: The UL Label and Mark on full factory packaging only
Earth core: none
CPR standard: no classification
Core section: 0.25mm2
Kind of material: no flame propagation
Cable structure: 4x2x0.25mm2
Rated voltage: 300V; 500V
Anzahl je Verpackung: 5 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details CFROBOT3.02.04.02 IGUS

Category: Cables for Power Chains - Shielded, Description: Wire: data transmission; chainflex® CFROBOT3; 4x2x0.25mm2; Cu, Operating temperature: -25...80°C, Conform to the norm: UL 10497; UL 20911, Type of wire: data transmission, Wire insulation material: PUR, Insulation colour: dark blue, Kind of core: Cu, Resistance to: coolant; mechanical stesses; moisture; most of oils; temperature; torsion; UV rays, Kind of wire: chainflex® CFROBOT3, Shield structure: shielded; tinned copper braid, Cable features: self-supporting; twisted pair conductors, Number of cores: 8, No. of pairs: 2, Core marking: coloured, Cable application: data transmission; indoor; industrial applications; outdoor; robotics, Cable external diameter: 9mm, Core structure: stranded, Information: The UL Label and Mark on full factory packaging only, Earth core: none, CPR standard: no classification, Core section: 0.25mm2, Kind of material: no flame propagation, Cable structure: 4x2x0.25mm2, Rated voltage: 300V; 500V, Anzahl je Verpackung: 5 Stücke.
