Produkte > IGUS > CFROBOT7.15.15.02.02.C
CFROBOT7.15.15.02.02.C

CFROBOT7.15.15.02.02.C IGUS


pVersion=0046&contRep=ZT&docId=005056AB752F1ED7BDF4008AF12A6A18&compId=CFROBOT7.EN.pdf?ci_sign=fae8d911952423e1c497ffab2c6e5c02e8cb78ac Hersteller: IGUS
Category: Cables for Power Chains - Shielded

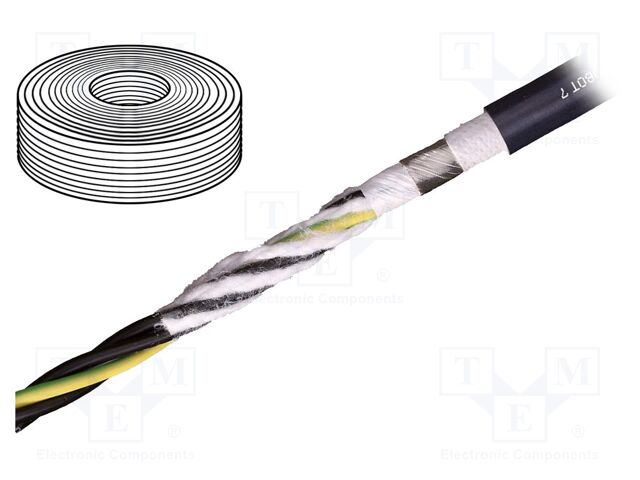

Description: Wire: motor; chainflex® CFROBOT7,hybrid; dark blue; stranded; Cu
Operating temperature: -25...80°C
Insulation colour: dark blue
Kind of wire: chainflex® CFROBOT7; hybrid
Type of wire: motor
Resistance to: coolant; mechanical stesses; moisture; most of oils; temperature; torsion; UV rays
Kind of core: Cu
Wire insulation material: PUR
Cable application: indoor; industrial applications; motors power 0,6/1 kV; outdoor; power chain; robotics
Kind of material: no flame propagation
CPR standard: no classification
Cable features: self-supporting; twisted pair conductors
Core structure: stranded
Information: The UL Label and Mark on full factory packaging only
Conform to the norm: UL 10492; UL 21223
Core section: 1.5mm2
Cable external diameter: 16.5mm
Cable structure: 2x2x1.5mm2; 4G1.5mm2
Number of cores: 8
Rated voltage: 0.6kV; 1kV
Shield structure: shielded; tinned copper braid
Anzahl je Verpackung: 5 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details CFROBOT7.15.15.02.02.C IGUS

Category: Cables for Power Chains - Shielded, Description: Wire: motor; chainflex® CFROBOT7,hybrid; dark blue; stranded; Cu, Operating temperature: -25...80°C, Insulation colour: dark blue, Kind of wire: chainflex® CFROBOT7; hybrid, Type of wire: motor, Resistance to: coolant; mechanical stesses; moisture; most of oils; temperature; torsion; UV rays, Kind of core: Cu, Wire insulation material: PUR, Cable application: indoor; industrial applications; motors power 0,6/1 kV; outdoor; power chain; robotics, Kind of material: no flame propagation, CPR standard: no classification, Cable features: self-supporting; twisted pair conductors, Core structure: stranded, Information: The UL Label and Mark on full factory packaging only, Conform to the norm: UL 10492; UL 21223, Core section: 1.5mm2, Cable external diameter: 16.5mm, Cable structure: 2x2x1.5mm2; 4G1.5mm2, Number of cores: 8, Rated voltage: 0.6kV; 1kV, Shield structure: shielded; tinned copper braid, Anzahl je Verpackung: 5 Stücke.

Weitere Produktangebote CFROBOT7.15.15.02.02.C

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
CFROBOT7.15.15.02.02.C CFROBOT7.15.15.02.02.C Hersteller : igus EU_Data_sheet_chainflex_CFROBOT7-3317307.pdf Multi-Conductor Cables chainflex PUR torsional SERVO cable 4 C x 16AWG (1.5) + 2 STP x 16AWG (1.5)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
CFROBOT7.15.15.02.02.C CFROBOT7.15.15.02.02.C Hersteller : IGUS pVersion=0046&contRep=ZT&docId=005056AB752F1ED7BDF4008AF12A6A18&compId=CFROBOT7.EN.pdf?ci_sign=fae8d911952423e1c497ffab2c6e5c02e8cb78ac Category: Cables for Power Chains - Shielded
Description: Wire: motor; chainflex® CFROBOT7,hybrid; dark blue; stranded; Cu
Operating temperature: -25...80°C
Insulation colour: dark blue
Kind of wire: chainflex® CFROBOT7; hybrid
Type of wire: motor
Resistance to: coolant; mechanical stesses; moisture; most of oils; temperature; torsion; UV rays
Kind of core: Cu
Wire insulation material: PUR
Cable application: indoor; industrial applications; motors power 0,6/1 kV; outdoor; power chain; robotics
Kind of material: no flame propagation
CPR standard: no classification
Cable features: self-supporting; twisted pair conductors
Core structure: stranded
Information: The UL Label and Mark on full factory packaging only
Conform to the norm: UL 10492; UL 21223
Core section: 1.5mm2
Cable external diameter: 16.5mm
Cable structure: 2x2x1.5mm2; 4G1.5mm2
Number of cores: 8
Rated voltage: 0.6kV; 1kV
Shield structure: shielded; tinned copper braid
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
