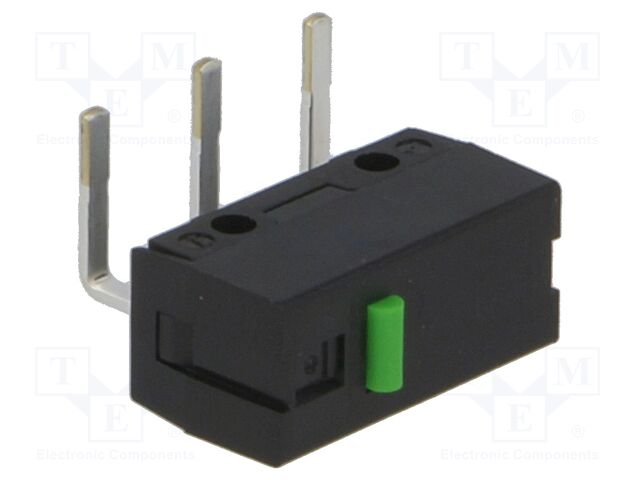

D2FS-F-N-A

D2FS-F-N-A OMRON Electronic Components


pVersion=0046&contRep=ZT&docId=005056AB752F1ED3AAD0D97FDE6941EC&compId=D2FS-SERIES-EN.pdf?ci_sign=bb7d5da9d0d7a8a7466f4bcc974f736fffedec8b Hersteller: OMRON Electronic Components
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 0.1A/6VDC; without lever; SPST-NO; D2FS
Type of switch: microswitch SNAP ACTION
DC contacts rating @R: 0.1A / 6V DC
Switches features: without lever
Contacts configuration: SPST-NO
Max. contact resistance:: 100mΩ
Switching method: OFF-(ON)
Number of positions: 2
Manufacturer series: D2FS
Stable positions number: 1
IP rating: IP40
Leads: angled; for PCB; right
Body dimensions: 12.8x6.5x5.8mm
Mechanical durability: 100000 cycles
Operating temperature: -20...70°C
Operating Force: 0.85N
Electrical life: 10000 cycles
Min. insulation resistance: 0.1GΩ
Terminal pitch: 5.08mm
Contact material: silver
Body material: plastic
Key stroke: 0.5mm
auf Bestellung 142 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
68+1.06 EUR
122+0.59 EUR
129+0.56 EUR
Mindestbestellmenge: 68
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details D2FS-F-N-A OMRON Electronic Components

Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 0.1A/6VDC; without lever; SPST-NO; D2FS, Type of switch: microswitch SNAP ACTION, DC contacts rating @R: 0.1A / 6V DC, Switches features: without lever, Contacts configuration: SPST-NO, Max. contact resistance:: 100mΩ, Switching method: OFF-(ON), Number of positions: 2, Manufacturer series: D2FS, Stable positions number: 1, IP rating: IP40, Leads: angled; for PCB; right, Body dimensions: 12.8x6.5x5.8mm, Mechanical durability: 100000 cycles, Operating temperature: -20...70°C, Operating Force: 0.85N, Electrical life: 10000 cycles, Min. insulation resistance: 0.1GΩ, Terminal pitch: 5.08mm, Contact material: silver, Body material: plastic, Key stroke: 0.5mm, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote D2FS-F-N-A nach Preis ab 0.56 EUR bis 1.87 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
D2FS-F-N-A D2FS-F-N-A Hersteller : OMRON Electronic Components pVersion=0046&contRep=ZT&docId=005056AB752F1ED3AAD0D97FDE6941EC&compId=D2FS-SERIES-EN.pdf?ci_sign=bb7d5da9d0d7a8a7466f4bcc974f736fffedec8b Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 0.1A/6VDC; without lever; SPST-NO; D2FS
Type of switch: microswitch SNAP ACTION
DC contacts rating @R: 0.1A / 6V DC
Switches features: without lever
Contacts configuration: SPST-NO
Max. contact resistance:: 100mΩ
Switching method: OFF-(ON)
Number of positions: 2
Manufacturer series: D2FS
Stable positions number: 1
IP rating: IP40
Leads: angled; for PCB; right
Body dimensions: 12.8x6.5x5.8mm
Mechanical durability: 100000 cycles
Operating temperature: -20...70°C
Operating Force: 0.85N
Electrical life: 10000 cycles
Min. insulation resistance: 0.1GΩ
Terminal pitch: 5.08mm
Contact material: silver
Body material: plastic
Key stroke: 0.5mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 142 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
68+1.06 EUR
122+0.59 EUR
129+0.56 EUR
Mindestbestellmenge: 68
Im Einkaufswagen  Stück im Wert von  UAH
D2FSFNA D2FSFNA Hersteller : Omron b121-e1.pdf Switch Snap Action N.O. SPST Pin Plunger 0.1A 6VDC 0.85N Thru-Hole PC Pins
auf Bestellung 142 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
108+1.36 EUR
Mindestbestellmenge: 108
Im Einkaufswagen  Stück im Wert von  UAH
D2FS-F-N-A D2FS-F-N-A Hersteller : Omron Electronics Inc-EMC Div en-d2fs.pdf Description: SWITCH SNAP ACT SPST-NO 0.1A 6V
Packaging: Bulk
Features: Actuator Mounted Right Side
Current Rating (Amps): 100mA (DC)
Mounting Type: Through Hole, Right Angle
Circuit: SPST-NO
Switch Function: Off-Mom
Operating Temperature: -20°C ~ 70°C
Termination Style: PC Pin
Actuator Type: Round (Pin Plunger)
Operating Force: 87gf
Ingress Protection: IP40
Release Force: 5.099gf
Pretravel: 0.020" (0.5mm)
Differential Travel: 0.005" (0.13mm)
Overtravel: 0.010" (0.25mm)
Operating Position: 0.276" (7.0mm)
Voltage Rating - DC: 6 V
auf Bestellung 167 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.8 EUR
25+1.73 EUR
50+1.66 EUR
100+1.59 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
D2FS-F-N-A D2FS-F-N-A Hersteller : Omron Electronics en-d2fs-270873.pdf Basic / Snap Action Switches Pin Plunger - PCB Terms Rght-angled
auf Bestellung 324 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+1.87 EUR
10+1.59 EUR
25+1.56 EUR
50+1.52 EUR
100+1.12 EUR
450+0.98 EUR
900+0.92 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
D2FS-F-N-A D2FS-F-N-A Hersteller : OMRON ELECTRONIC COMPONENTS 2341352.pdf Description: OMRON ELECTRONIC COMPONENTS - D2FS-F-N-A - Mikroschalter, Ultra-Subminiatur, Stiftstößel, SPST-NO, Durchsteckmontage, 100 mA, 6 VDC
tariffCode: 85365007
rohsCompliant: YES
Schalteranschlüsse: Durchsteckmontage
Mikroschalter-Betätiger: Stiftstößel
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktstrom, max.: 100mA
usEccn: EAR99
AC-Kontaktspannung, nom.: -
euEccn: NLR
DC-Kontaktspannung, nom.: 6VDC
Produktpalette: -
productTraceability: No
Betätigungskraft, max.: 0.85N
Kontaktkonfiguration: SPST-NO
Mikroschaltertyp: Ultra-Subminiatur
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
D2FSFNA D2FSFNA Hersteller : Omron 99en-d2fs.pdf Switch Snap Action N.O. SPST Pin Plunger PC Pins 0.1A 6VDC 0.85N Thru-Hole
