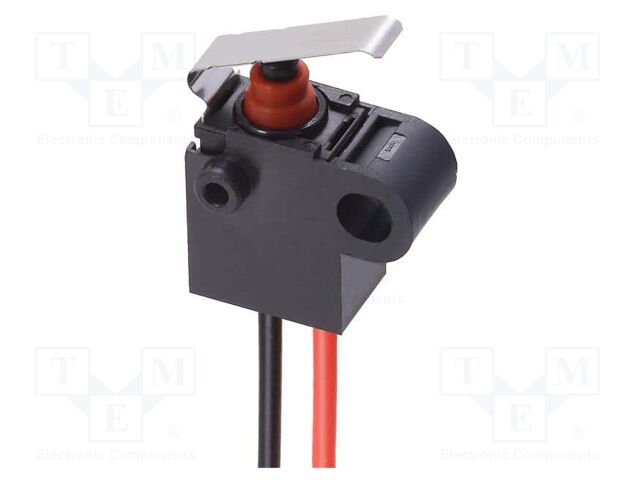

D2GW-SC6L2M BY OMR OMRON Electronic Components

Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 0.01A/13.5VDC; SPST-NC; ON-(OFF); Pos: 2, Type of switch: microswitch SNAP ACTION, DC contacts rating @R: 0.01A / 13.5V DC, Switches features: with lever with end bended out, Contacts configuration: SPST-NC, Max. contact resistance:: 700mΩ, Switching method: ON-(OFF), Number of positions: 2, Stable positions number: 1, IP rating: IP67, Leads: leads 300mm, Body dimensions: 13.9x6x12mm, Mechanical durability: 200000 cycles, Operating temperature: -40...85°C, Operating Force: 1.5N, Electrical life: 200000 cycles, Contact plating: silver plated, Min. insulation resistance: 0.1GΩ, Key stroke: 2.6mm, Mounting: screw, Manufacturer series: D2GW.
