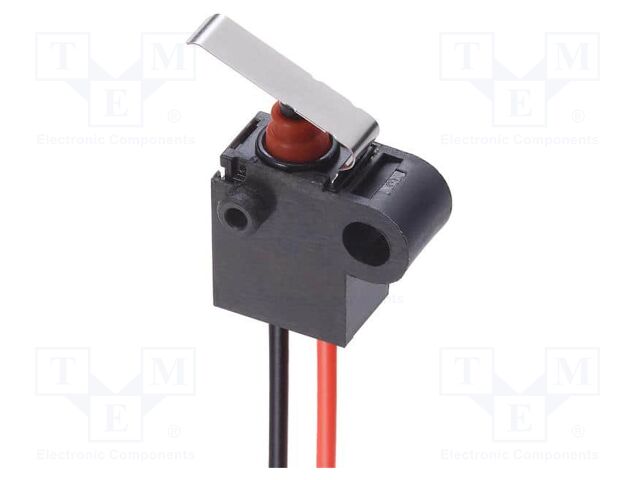

D2GW-SC6R2M BY OMR OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 0.01A/13.5VDC; SPST-NC; ON-(OFF); Pos: 2
Mounting: screw
Contact plating: silver plated
Mechanical durability: 200000 cycles
Max. contact resistance:: 700mΩ
Min. insulation resistance: 0.1GΩ
Operating temperature: -40...85°C
Body dimensions: 13.9x6x12mm
IP rating: IP67
Leads: cables
Electrical life: 200000 cycles
Type of switch: microswitch SNAP ACTION
Contacts configuration: SPST-NC
DC contacts rating @R: 0.01A / 13.5V DC
Switching method: ON-(OFF)
Stable positions number: 1
Operating Force: 1.5N
Key stroke: 2.6mm
Switches features: with lever with end bended out
Lead length: 0.3m
Manufacturer series: D2GW
Number of positions: 2
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details D2GW-SC6R2M BY OMR OMRON Electronic Components
Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 0.01A/13.5VDC; SPST-NC; ON-(OFF); Pos: 2, Mounting: screw, Contact plating: silver plated, Mechanical durability: 200000 cycles, Max. contact resistance:: 700mΩ, Min. insulation resistance: 0.1GΩ, Operating temperature: -40...85°C, Body dimensions: 13.9x6x12mm, IP rating: IP67, Leads: cables, Electrical life: 200000 cycles, Type of switch: microswitch SNAP ACTION, Contacts configuration: SPST-NC, DC contacts rating @R: 0.01A / 13.5V DC, Switching method: ON-(OFF), Stable positions number: 1, Operating Force: 1.5N, Key stroke: 2.6mm, Switches features: with lever with end bended out, Lead length: 0.3m, Manufacturer series: D2GW, Number of positions: 2, Anzahl je Verpackung: 1 Stücke.
