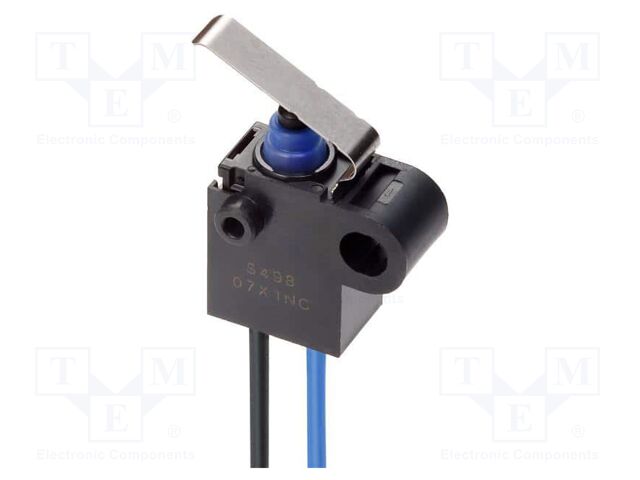

D2GW-SC6R3M BY OMR OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 0.01A/13.5VDC; SPST-NO; OFF-(ON); Pos: 2
Leads: cables
Mounting: screw
IP rating: IP67
Type of switch: microswitch SNAP ACTION
Contact plating: silver plated
Switching method: OFF-(ON)
Contacts configuration: SPST-NO
Switches features: with lever with end bended out
Operating temperature: -40...85°C
Key stroke: 2.6mm
DC contacts rating @R: 0.01A / 13.5V DC
Body dimensions: 13.9x6x12mm
Lead length: 0.3m
Max. contact resistance:: 700mΩ
Operating Force: 1.5N
Stable positions number: 1
Number of positions: 2
Electrical life: 200000 cycles
Mechanical durability: 200000 cycles
Min. insulation resistance: 0.1GΩ
Manufacturer series: D2GW
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details D2GW-SC6R3M BY OMR OMRON Electronic Components
Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 0.01A/13.5VDC; SPST-NO; OFF-(ON); Pos: 2, Leads: cables, Mounting: screw, IP rating: IP67, Type of switch: microswitch SNAP ACTION, Contact plating: silver plated, Switching method: OFF-(ON), Contacts configuration: SPST-NO, Switches features: with lever with end bended out, Operating temperature: -40...85°C, Key stroke: 2.6mm, DC contacts rating @R: 0.01A / 13.5V DC, Body dimensions: 13.9x6x12mm, Lead length: 0.3m, Max. contact resistance:: 700mΩ, Operating Force: 1.5N, Stable positions number: 1, Number of positions: 2, Electrical life: 200000 cycles, Mechanical durability: 200000 cycles, Min. insulation resistance: 0.1GΩ, Manufacturer series: D2GW, Anzahl je Verpackung: 1 Stücke.
