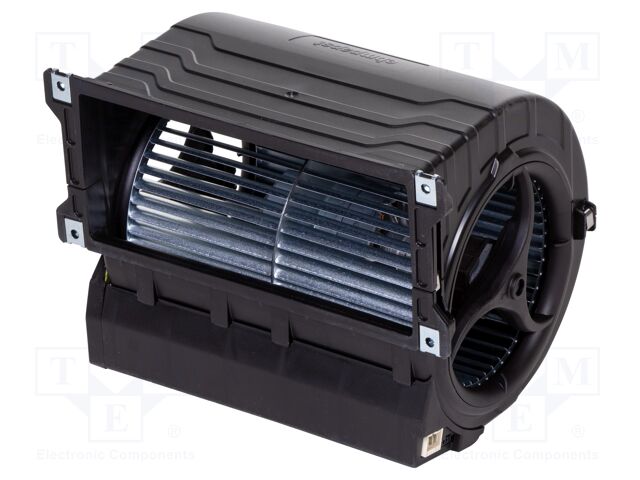

D3G146-LV13-30 EBM-PAPST
Hersteller: EBM-PAPST
Category: EC Fans
Description: Fan: EC; blower; 230VAC; 272x209.3x202.3mm; 1155m3/h; ball; 1550rpm
Type of fan: EC
Kind of fan: blower
Supply voltage: 230V AC
Operating voltage: 200...240V AC
Fan dimensions: 272x209.3x202.3mm
Power consumption: 167W
Current rating: 1.3A
Fan efficiency: 1155m3/h
Kind of Bearing: ball
Rotational rate/speed: 1550rpm
Frequency: 50...60Hz
Impeller material: steel
Insulation class: F
IP rating: IP20
Operating temperature: -25...60°C
Additional functions: control input 0-10V DC / PWM; motor current limitation; output 10V DC, max. 1,1 mA; soft start; tach output; thermal overload protection for electronics / motor
Fan motor: M3G055-DF
Colour: black
Kind of motor: 1-phase
Protection class: I
Enclosure material: polypropylene PP
Anzahl je Verpackung: 1 Stücke
Category: EC Fans
Description: Fan: EC; blower; 230VAC; 272x209.3x202.3mm; 1155m3/h; ball; 1550rpm
Type of fan: EC
Kind of fan: blower
Supply voltage: 230V AC
Operating voltage: 200...240V AC
Fan dimensions: 272x209.3x202.3mm
Power consumption: 167W
Current rating: 1.3A
Fan efficiency: 1155m3/h
Kind of Bearing: ball
Rotational rate/speed: 1550rpm
Frequency: 50...60Hz
Impeller material: steel
Insulation class: F
IP rating: IP20
Operating temperature: -25...60°C
Additional functions: control input 0-10V DC / PWM; motor current limitation; output 10V DC, max. 1,1 mA; soft start; tach output; thermal overload protection for electronics / motor
Fan motor: M3G055-DF
Colour: black
Kind of motor: 1-phase
Protection class: I
Enclosure material: polypropylene PP
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details D3G146-LV13-30 EBM-PAPST
Category: EC Fans, Description: Fan: EC; blower; 230VAC; 272x209.3x202.3mm; 1155m3/h; ball; 1550rpm, Type of fan: EC, Kind of fan: blower, Supply voltage: 230V AC, Operating voltage: 200...240V AC, Fan dimensions: 272x209.3x202.3mm, Power consumption: 167W, Current rating: 1.3A, Fan efficiency: 1155m3/h, Kind of Bearing: ball, Rotational rate/speed: 1550rpm, Frequency: 50...60Hz, Impeller material: steel, Insulation class: F, IP rating: IP20, Operating temperature: -25...60°C, Additional functions: control input 0-10V DC / PWM; motor current limitation; output 10V DC, max. 1,1 mA; soft start; tach output; thermal overload protection for electronics / motor, Fan motor: M3G055-DF, Colour: black, Kind of motor: 1-phase, Protection class: I, Enclosure material: polypropylene PP, Anzahl je Verpackung: 1 Stücke.
