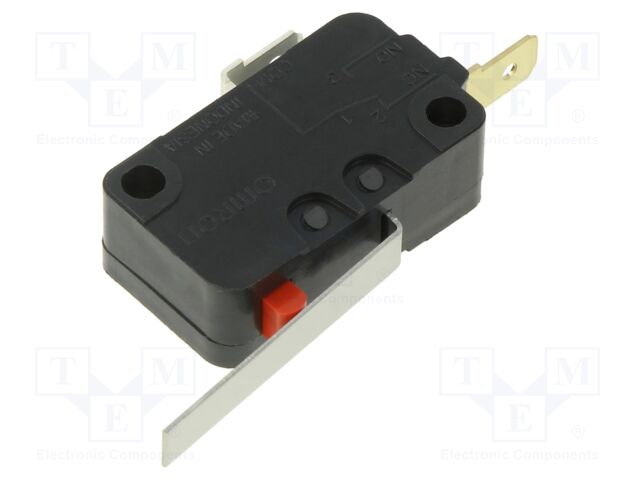

D3V-012-2C23 OMRON Electronic Components

Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 0.1A/125VAC; 0.1A/30VDC; with lever, Switches features: with lever, Operating temperature: -25...85°C, Leads dimensions: 4.75x0.5mm, Lever length: 27.5mm, Body dimensions: 27.8x10.3x15.9mm, Max. contact resistance:: 50mΩ, DC contacts rating @R: 0.1A / 30V DC, AC contacts rating @R: 0.1A / 125V AC, Operating Force: 0.59N, Stable positions number: 1, Number of positions: 2, Electrical life: 500000 cycles, Mechanical durability: 10000000 cycles, Min. insulation resistance: 0.1GΩ, Leads: connectors, Manufacturer series: D3V, Contact plating: gold-plated, IP rating: IP40, Type of switch: microswitch SNAP ACTION, Switching method: ON-(OFF), Contacts configuration: SPST-NC, Anzahl je Verpackung: 1 Stücke.
