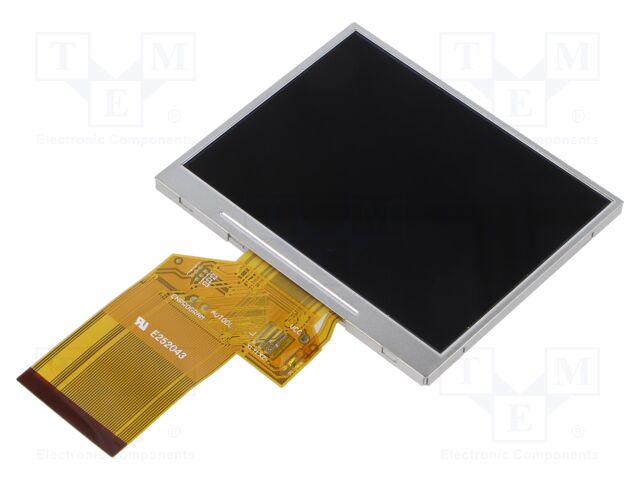

DEM 320240T2 VTX-PW-N DISPLAY ELEKTRONIK
Hersteller: DISPLAY ELEKTRONIK
Category: TFT displays
Description: Display: TFT; 3.5"; 320x240; Illumin: LED; Dim: 76.9x63.9x3.2mm
Kind of controller: ST7272A
Type of display: TFT
Illumination: LED
Backlight colour: white
Tape pitch: 0.5mm
Dimensions: 76.9x63.9x3.2mm
Window dimensions (H x W): 70.08x52.56mm
Screen size: 3.5"
Supply voltage: 3...3.6V DC
Number of pins: 54
Contrast: 800:1
Luminosity: 1kcd/m2
Display resolution: 320x240
No. of colours: 16.7M
Connector pinout layout: 1x54
Interface: 24bit RGB; SPI
Display features: transflective
Touchpad: none
Kind of display: graphical
Category: TFT displays
Description: Display: TFT; 3.5"; 320x240; Illumin: LED; Dim: 76.9x63.9x3.2mm
Kind of controller: ST7272A
Type of display: TFT
Illumination: LED
Backlight colour: white
Tape pitch: 0.5mm
Dimensions: 76.9x63.9x3.2mm
Window dimensions (H x W): 70.08x52.56mm
Screen size: 3.5"
Supply voltage: 3...3.6V DC
Number of pins: 54
Contrast: 800:1
Luminosity: 1kcd/m2
Display resolution: 320x240
No. of colours: 16.7M
Connector pinout layout: 1x54
Interface: 24bit RGB; SPI
Display features: transflective
Touchpad: none
Kind of display: graphical
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 42.26 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DEM 320240T2 VTX-PW-N DISPLAY ELEKTRONIK
Category: TFT displays, Description: Display: TFT; 3.5"; 320x240; Illumin: LED; Dim: 76.9x63.9x3.2mm, Kind of controller: ST7272A, Type of display: TFT, Illumination: LED, Backlight colour: white, Tape pitch: 0.5mm, Dimensions: 76.9x63.9x3.2mm, Window dimensions (H x W): 70.08x52.56mm, Screen size: 3.5", Supply voltage: 3...3.6V DC, Number of pins: 54, Contrast: 800:1, Luminosity: 1kcd/m2, Display resolution: 320x240, No. of colours: 16.7M, Connector pinout layout: 1x54, Interface: 24bit RGB; SPI, Display features: transflective, Touchpad: none, Kind of display: graphical.
