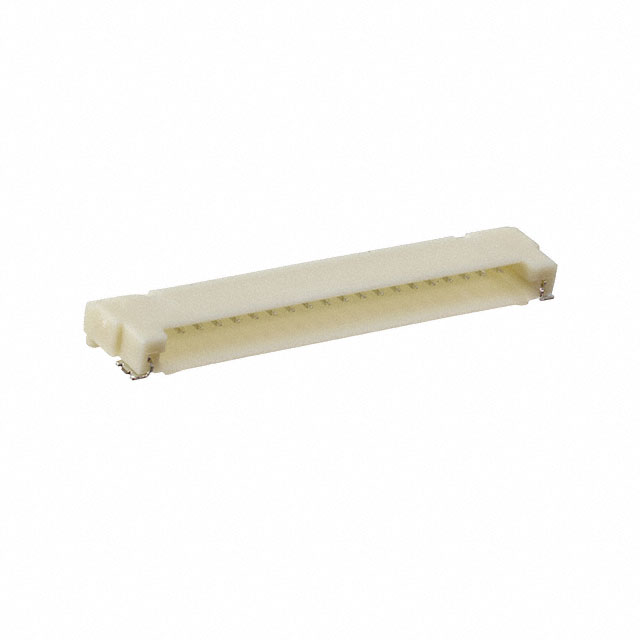

DF14-20P-1.25H(24) Hirose Connector

Description: CONN HEADER SMD R/A 20POS 1.25MM, Insulation Material: Polyamide (PA), Nylon, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.098" (2.50mm), Contact Shape: Square, Part Status: Obsolete, Contact Finish - Post: Tin-Copper, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Mating: Tin-Copper, Pitch - Mating: 0.049" (1.25mm), Insulation Color: Beige, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -35°C ~ 85°C, Style: Board to Cable/Wire, Number of Rows: 1, Number of Positions: 20, Mounting Type: Surface Mount, Right Angle, Current Rating (Amps): 1A, Voltage Rating: 150VAC, Connector Type: Header, Features: Board Guide, Solder Retention, Packaging: Tube, Contact Length - Mating: 0.086" (2.20mm).
