Produkte > DEGSON ELECTRONICS > DG88-03P-13-10AH

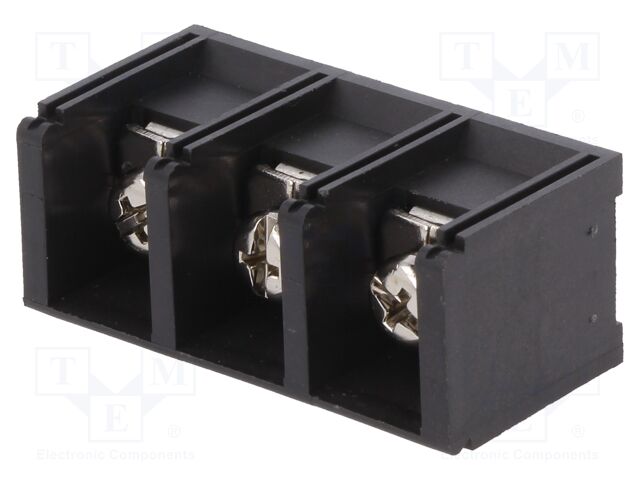

DG88-03P-13-10AH

DG88-03P-13-10AH DEGSON ELECTRONICS

pVersion=0046&contRep=ZT&docId=005056AB752F1ED6AEDC648885375E27&compId=DG88-XXP-1Y-10AH%20T0.pdf?ci_sign=b51cf26f4ad2d5191c3a0aaad543dee44261fd6e Hersteller: DEGSON ELECTRONICS
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 41A; 750V; straight; 1x3
Flammability rating: UL94V-0
Body material: polyamide 66
Height: 26mm
Length: 51.4mm
Depth: 21mm
Contact material: copper alloy
Connector pinout layout: 1x3
Contacts pitch: 16mm
Conform to the norm: CE; UL; VDE
Wire cross-section: 6mm2
Wire size: 14AWG...6AWG
Electrical mounting: screw terminal; THT
Mechanical mounting: on PCBs
Number of ways: 3
Spatial orientation: straight
Colour: black
Type of connector: PCB terminal block
Connector: terminal
Contact plating: tinned
Rated voltage: 750V
Terminal pitch: 16x9mm
Operating temperature: -40...105°C
Current rating: 41A
auf Bestellung 124 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
25+2.97 EUR
35+2.04 EUR
38+1.93 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details DG88-03P-13-10AH DEGSON ELECTRONICS

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 41A; 750V; straight; 1x3, Flammability rating: UL94V-0, Body material: polyamide 66, Height: 26mm, Length: 51.4mm, Depth: 21mm, Contact material: copper alloy, Connector pinout layout: 1x3, Contacts pitch: 16mm, Conform to the norm: CE; UL; VDE, Wire cross-section: 6mm2, Wire size: 14AWG...6AWG, Electrical mounting: screw terminal; THT, Mechanical mounting: on PCBs, Number of ways: 3, Spatial orientation: straight, Colour: black, Type of connector: PCB terminal block, Connector: terminal, Contact plating: tinned, Rated voltage: 750V, Terminal pitch: 16x9mm, Operating temperature: -40...105°C, Current rating: 41A, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote DG88-03P-13-10AH nach Preis ab 1.9 EUR bis 2.97 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
DG88-03P-13-10AH DG88-03P-13-10AH Hersteller : DEGSON ELECTRONICS pVersion=0046&contRep=ZT&docId=005056AB752F1ED6AEDC648885375E27&compId=DG88-XXP-1Y-10AH%20T0.pdf?ci_sign=b51cf26f4ad2d5191c3a0aaad543dee44261fd6e Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 41A; 750V; straight; 1x3
Flammability rating: UL94V-0
Body material: polyamide 66
Height: 26mm
Length: 51.4mm
Depth: 21mm
Contact material: copper alloy
Connector pinout layout: 1x3
Contacts pitch: 16mm
Conform to the norm: CE; UL; VDE
Wire cross-section: 6mm2
Wire size: 14AWG...6AWG
Electrical mounting: screw terminal; THT
Mechanical mounting: on PCBs
Number of ways: 3
Spatial orientation: straight
Colour: black
Type of connector: PCB terminal block
Connector: terminal
Contact plating: tinned
Rated voltage: 750V
Terminal pitch: 16x9mm
Operating temperature: -40...105°C
Current rating: 41A
Anzahl je Verpackung: 1 Stücke
auf Bestellung 124 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
25+2.97 EUR
35+2.04 EUR
38+1.93 EUR
600+1.9 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
