Produkte > DEGSON ELECTRONICS > DG88-04P-13-10AH

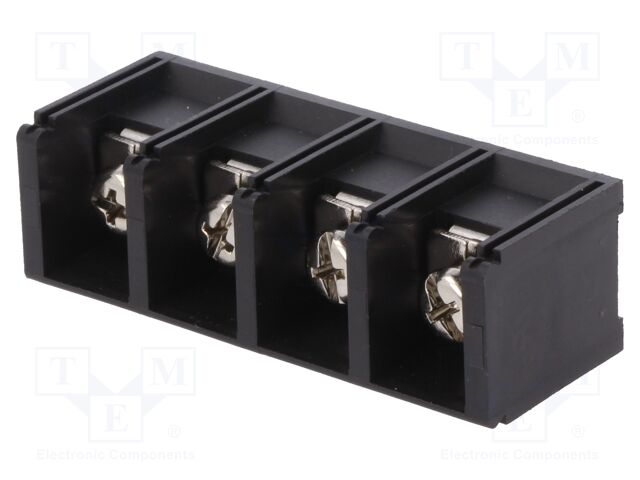

DG88-04P-13-10AH

DG88-04P-13-10AH DEGSON ELECTRONICS

pVersion=0046&contRep=ZT&docId=005056AB752F1ED6AEDC648885375E27&compId=DG88-XXP-1Y-10AH%20T0.pdf?ci_sign=b51cf26f4ad2d5191c3a0aaad543dee44261fd6e Hersteller: DEGSON ELECTRONICS
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 41A; 750V; straight; 1x4
Operating temperature: -40...105°C
Type of connector: PCB terminal block
Connector: terminal
Body material: polyamide 66
Electrical mounting: screw terminal; THT
Spatial orientation: straight
Contact plating: tinned
Flammability rating: UL94V-0
Wire cross-section: 6mm2
Terminal pitch: 16x9mm
Height: 26mm
Contacts pitch: 16mm
Depth: 21mm
Length: 67.4mm
Number of ways: 4
Current rating: 41A
Wire size: 14AWG...6AWG
Rated voltage: 750V
Connector pinout layout: 1x4
Colour: black
Contact material: copper alloy
Conform to the norm: CE; UL; VDE
Mechanical mounting: on PCBs
auf Bestellung 273 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
19+3.86 EUR
22+3.39 EUR
70+2.93 EUR
Mindestbestellmenge: 19
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details DG88-04P-13-10AH DEGSON ELECTRONICS

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 41A; 750V; straight; 1x4, Operating temperature: -40...105°C, Type of connector: PCB terminal block, Connector: terminal, Body material: polyamide 66, Electrical mounting: screw terminal; THT, Spatial orientation: straight, Contact plating: tinned, Flammability rating: UL94V-0, Wire cross-section: 6mm2, Terminal pitch: 16x9mm, Height: 26mm, Contacts pitch: 16mm, Depth: 21mm, Length: 67.4mm, Number of ways: 4, Current rating: 41A, Wire size: 14AWG...6AWG, Rated voltage: 750V, Connector pinout layout: 1x4, Colour: black, Contact material: copper alloy, Conform to the norm: CE; UL; VDE, Mechanical mounting: on PCBs, Anzahl je Verpackung: 1 Stücke.
