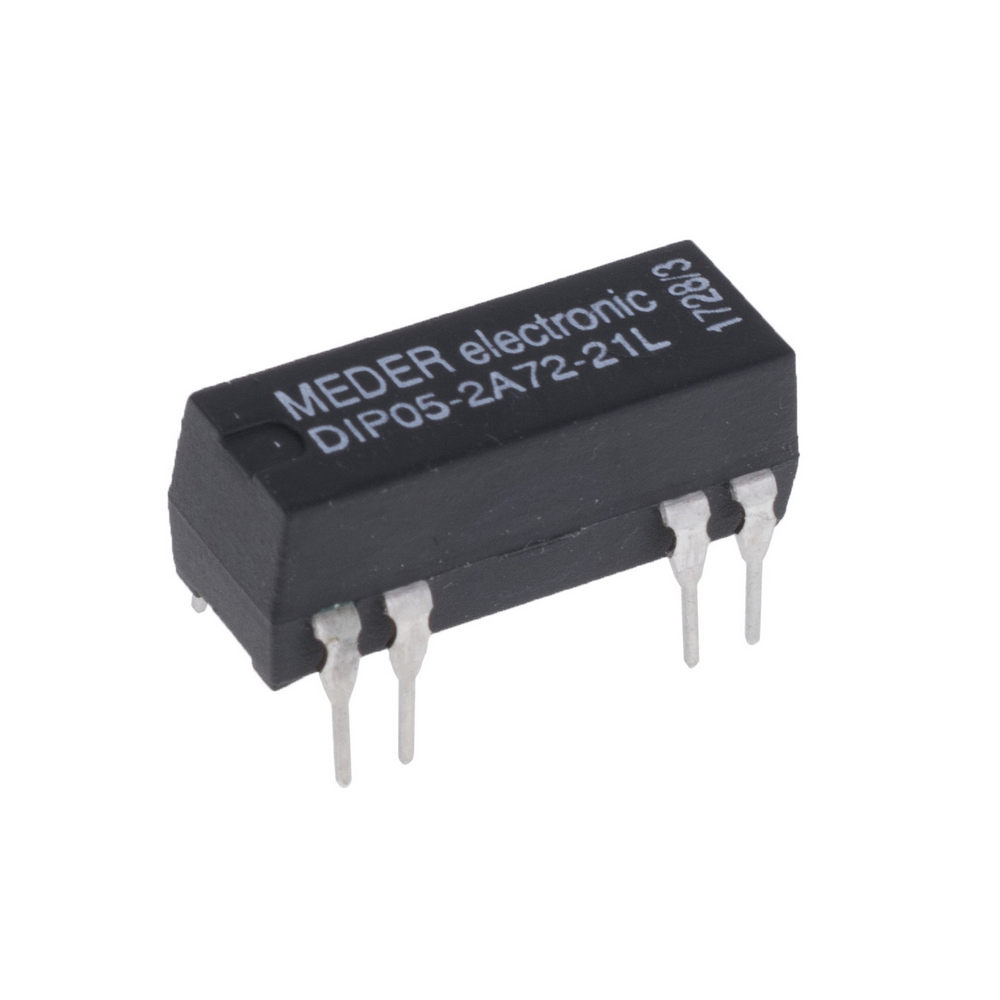

DIP05-2A72-21L Meder
Produktcode: 114610
1
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller: Meder
Relaistyp: Твердотільні
Beschreibung: Тип контактів: 1A; Uкотушки: 5VDC; Iкомутації: 1A; Rкотушки: 200 Ohm
Abmessungen: DIP-14
Spulenspannung: 5 VDC
Strom max: 1 A
Kontaktkonfiguration: DPST-NO(2A)
Schaltspannung: 200 VDC
Produktrezensionen
Produktbewertung abgeben
Technische Details DIP05-2A72-21L Meder
- RELAY, REED, DIP, 5VDC
- No. of Poles:2
- Max Contact Voltage AC:200V
- Max Contact Voltage DC:200V
- Max Contact Current AC:1A
- Max Contact Current DC:1A
- Mounting Type:PCB
- External Length / Height:7.5mm
- External Width:19.3mm
- External Depth:7mm
- Approval Bodies:UL
- Coil Resistance:200ohm
- Contact Current Rating:1.25A
- Contact Resistance:150mohm
- Dielectric Strength, VAC:1500V dc
- Max Coil Voltage:7.5V dc
- Max Operating Temperature:70`C
- Max Switch Current:1A
- Max Switch Power:20W
- Max Switch Voltage:200V dc
- Min Temperature Operating:-20`C
- No. of Pins:8
- Nom Coil Voltage DC:5V
- Operating Time:0.5ms
- Release Time:0.1ms
Weitere Produktangebote DIP05-2A72-21L nach Preis ab 4.63 EUR bis 12.44 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DIP05-2A72-21L | StandexMeder Electronics |
 Reed Relay 5VDC 200Ohm 0.5A DPST-NO(19.3x7.62x7.5)mm THT Dry |
auf Bestellung 40 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
DIP05-2A72-21L | MEDER |
Category: Reed Electromagnetic Relays Description: Relay: reed switch; DPST-NO; Ucoil: 5VDC; 1A; max.200VDC; 125mW; PCB Type of relay: reed switch Contacts configuration: DPST-NO Rated coil voltage: 5V DC Contact current max.: 1A Switched voltage: max. 200V AC; max. 200V DC Coil resistance: 200Ω Coil power consumption: 125mW Mounting: PCB Contact resistance: 0.15Ω Operating temperature: -20...70°C Body dimensions: 19.3x7.5x7mm Soldering temperature: 260°C Manufacturer series: DIP Case: DIP14 Terminal pitch: 2.54mm Coil voltage min.: 3.5V DC Coil voltage max.: 7.5V DC |
auf Bestellung 451 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
|
|
DIP05-2A72-21L | StandexMeder Electronics |
Reed Relay 5VDC 200Ohm 0.5A DPST-NO(19.3x7.62x7.5)mm THT Dry |
auf Bestellung 125 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
DIP05-2A72-21L | Standex-Meder Electronics |
Description: RELAY REED DPST 1A 5V Part Status: Active Release Time: 0.1 ms Operate Time: 0.5 ms Must Operate Voltage: 3.5 VDC Must Release Voltage: 0.75 VDC Switching Voltage: 200VAC, 200VDC - Max Contact Rating (Current): 1 A Contact Form: DPST-NO (2 Form A) Coil Type: Non Latching Coil Current: 25 mA Termination Style: PC Pin Operating Temperature: -20°C ~ 70°C Coil Voltage: 5VDC Mounting Type: Through Hole Packaging: Tube |
auf Bestellung 936 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
DIP05-2A72-21L | STANDEXMEDER |
Description: STANDEXMEDER - DIP05-2A72-21L - Reed-Relais, DPST-NO, 5 VDC, DIP Series, Durchsteckmontage, 200 ohm, 500 mA tariffCode: 85364110 productTraceability: No Schaltspannung, max.: 200V rohsCompliant: YES Spulenwiderstand: 200ohm Relaismontage: Durchsteckmontage Schaltstrom, max.: 500mA Kontaktkonfiguration: DPST-NO Spulenspannung: 5VDC euEccn: NLR isCanonical: Y hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 Produktpalette: DIP Series |
auf Bestellung 197 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| DIP05-2A72-21L | |
|
Hersteller: StandexMeder Electronics
Reed Relay 5VDC 200Ohm 0.5A DPST-NO(19.3x7.62x7.5)mm THT Dry
Reed Relay 5VDC 200Ohm 0.5A DPST-NO(19.3x7.62x7.5)mm THT Dry
auf Bestellung 40 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 20+ | 7.49 EUR |
| 25+ | 7.06 EUR |
| DIP05-2A72-21L | |
|
Hersteller: MEDER
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 5VDC; 1A; max.200VDC; 125mW; PCB
Type of relay: reed switch
Contacts configuration: DPST-NO
Rated coil voltage: 5V DC
Contact current max.: 1A
Switched voltage: max. 200V AC; max. 200V DC
Coil resistance: 200Ω
Coil power consumption: 125mW
Mounting: PCB
Contact resistance: 0.15Ω
Operating temperature: -20...70°C
Body dimensions: 19.3x7.5x7mm
Soldering temperature: 260°C
Manufacturer series: DIP
Case: DIP14
Terminal pitch: 2.54mm
Coil voltage min.: 3.5V DC
Coil voltage max.: 7.5V DC
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 5VDC; 1A; max.200VDC; 125mW; PCB
Type of relay: reed switch
Contacts configuration: DPST-NO
Rated coil voltage: 5V DC
Contact current max.: 1A
Switched voltage: max. 200V AC; max. 200V DC
Coil resistance: 200Ω
Coil power consumption: 125mW
Mounting: PCB
Contact resistance: 0.15Ω
Operating temperature: -20...70°C
Body dimensions: 19.3x7.5x7mm
Soldering temperature: 260°C
Manufacturer series: DIP
Case: DIP14
Terminal pitch: 2.54mm
Coil voltage min.: 3.5V DC
Coil voltage max.: 7.5V DC
auf Bestellung 451 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 10+ | 7.82 EUR |
| 11+ | 6.81 EUR |
| 12+ | 6.09 EUR |
| 25+ | 5.25 EUR |
| 50+ | 4.83 EUR |
| 100+ | 4.63 EUR |
| DIP05-2A72-21L | |
|
Hersteller: StandexMeder Electronics
Reed Relay 5VDC 200Ohm 0.5A DPST-NO(19.3x7.62x7.5)mm THT Dry
Reed Relay 5VDC 200Ohm 0.5A DPST-NO(19.3x7.62x7.5)mm THT Dry
auf Bestellung 125 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 19+ | 7.95 EUR |
| 50+ | 6.89 EUR |
| 100+ | 6.47 EUR |
| DIP05-2A72-21L | |
|
Hersteller: Standex-Meder Electronics
Description: RELAY REED DPST 1A 5V
Part Status: Active
Release Time: 0.1 ms
Operate Time: 0.5 ms
Must Operate Voltage: 3.5 VDC
Must Release Voltage: 0.75 VDC
Switching Voltage: 200VAC, 200VDC - Max
Contact Rating (Current): 1 A
Contact Form: DPST-NO (2 Form A)
Coil Type: Non Latching
Coil Current: 25 mA
Termination Style: PC Pin
Operating Temperature: -20°C ~ 70°C
Coil Voltage: 5VDC
Mounting Type: Through Hole
Packaging: Tube
Description: RELAY REED DPST 1A 5V
Part Status: Active
Release Time: 0.1 ms
Operate Time: 0.5 ms
Must Operate Voltage: 3.5 VDC
Must Release Voltage: 0.75 VDC
Switching Voltage: 200VAC, 200VDC - Max
Contact Rating (Current): 1 A
Contact Form: DPST-NO (2 Form A)
Coil Type: Non Latching
Coil Current: 25 mA
Termination Style: PC Pin
Operating Temperature: -20°C ~ 70°C
Coil Voltage: 5VDC
Mounting Type: Through Hole
Packaging: Tube
auf Bestellung 936 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 2+ | 12.44 EUR |
| 10+ | 10.35 EUR |
| 25+ | 9.59 EUR |
| 100+ | 8.56 EUR |
| 250+ | 7.98 EUR |
| 500+ | 7.59 EUR |
| DIP05-2A72-21L | |
|
Hersteller: STANDEXMEDER
Description: STANDEXMEDER - DIP05-2A72-21L - Reed-Relais, DPST-NO, 5 VDC, DIP Series, Durchsteckmontage, 200 ohm, 500 mA
tariffCode: 85364110
productTraceability: No
Schaltspannung, max.: 200V
rohsCompliant: YES
Spulenwiderstand: 200ohm
Relaismontage: Durchsteckmontage
Schaltstrom, max.: 500mA
Kontaktkonfiguration: DPST-NO
Spulenspannung: 5VDC
euEccn: NLR
isCanonical: Y
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: EAR99
Produktpalette: DIP Series
Description: STANDEXMEDER - DIP05-2A72-21L - Reed-Relais, DPST-NO, 5 VDC, DIP Series, Durchsteckmontage, 200 ohm, 500 mA
tariffCode: 85364110
productTraceability: No
Schaltspannung, max.: 200V
rohsCompliant: YES
Spulenwiderstand: 200ohm
Relaismontage: Durchsteckmontage
Schaltstrom, max.: 500mA
Kontaktkonfiguration: DPST-NO
Spulenspannung: 5VDC
euEccn: NLR
isCanonical: Y
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: EAR99
Produktpalette: DIP Series
auf Bestellung 197 Stücke:
Lieferzeit 14-21 Tag (e)Im Einkaufswagen Stück im Wert von UAH
