DIP12-2A72-21L MEDER
Hersteller: MEDER
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 290mW
Type of relay: reed switch
Contacts configuration: DPST-NO
Rated coil voltage: 12V DC
Contact current max.: 1A
Switched voltage: max. 200V AC; max. 200V DC
Coil resistance: 500Ω
Coil power consumption: 290mW
Mounting: PCB
Relay series: DIP
Case: DIP14
Contact resistance: 0.15Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 16V DC
Operating temperature: -20...70°C
Soldering temperature: 260°C
Body dimensions: 19.3x7.5x7mm
Terminal pitch: 2.54mm
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 290mW
Type of relay: reed switch
Contacts configuration: DPST-NO
Rated coil voltage: 12V DC
Contact current max.: 1A
Switched voltage: max. 200V AC; max. 200V DC
Coil resistance: 500Ω
Coil power consumption: 290mW
Mounting: PCB
Relay series: DIP
Case: DIP14
Contact resistance: 0.15Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 16V DC
Operating temperature: -20...70°C
Soldering temperature: 260°C
Body dimensions: 19.3x7.5x7mm
Terminal pitch: 2.54mm
auf Bestellung 583 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
14+ | 5.42 EUR |
20+ | 3.73 EUR |
21+ | 3.53 EUR |
500+ | 3.4 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DIP12-2A72-21L MEDER
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; DPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 290mW, Type of relay: reed switch, Contacts configuration: DPST-NO, Rated coil voltage: 12V DC, Contact current max.: 1A, Switched voltage: max. 200V AC; max. 200V DC, Coil resistance: 500Ω, Coil power consumption: 290mW, Mounting: PCB, Relay series: DIP, Case: DIP14, Contact resistance: 0.15Ω, Coil voltage min.: 8.4V DC, Coil voltage max.: 16V DC, Operating temperature: -20...70°C, Soldering temperature: 260°C, Body dimensions: 19.3x7.5x7mm, Terminal pitch: 2.54mm, Anzahl je Verpackung: 1 Stücke.
Möglichen Substitutionen DIP12-2A72-21L MEDER
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

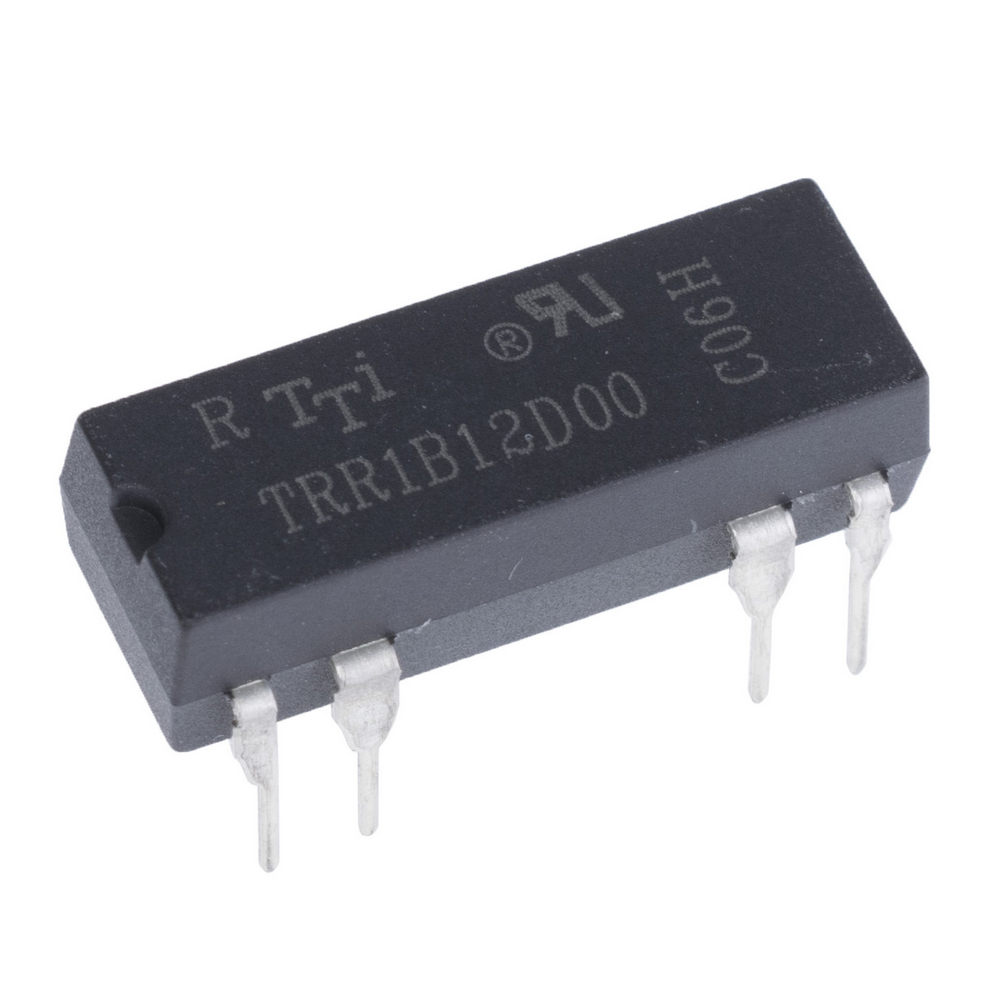

TRR-1B-12-D-00 Produktcode: 99316 |
Hersteller : TI |
Relais Relaistyp: Festkorper Relais Beschreibung: Kontaktart: 1B; U-Spule: 12B; I-komm: 0,5A; UBelast.: 30VDC Abmessungen: 19,6x8,9x7,6mm(DIP) Spulenspannung: 12 VDC Strom max: 0,5 A Kontaktkonfiguration: SPST-NC(1B) Schaltspannung: 100 VDC |
verfügbar: 710 Stück
12 Stück - stock Köln
698 Stück - lieferbar in 3-4 Wochen |
|
Weitere Produktangebote DIP12-2A72-21L nach Preis ab 3.4 EUR bis 11.3 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIP12-2A72-21L | Hersteller : MEDER |
Category: Reed Electromagnetic Relays Description: Relay: reed switch; DPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 290mW Type of relay: reed switch Contacts configuration: DPST-NO Rated coil voltage: 12V DC Contact current max.: 1A Switched voltage: max. 200V AC; max. 200V DC Coil resistance: 500Ω Coil power consumption: 290mW Mounting: PCB Relay series: DIP Case: DIP14 Contact resistance: 0.15Ω Coil voltage min.: 8.4V DC Coil voltage max.: 16V DC Operating temperature: -20...70°C Soldering temperature: 260°C Body dimensions: 19.3x7.5x7mm Terminal pitch: 2.54mm Anzahl je Verpackung: 1 Stücke |
auf Bestellung 583 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||
DIP12-2A72-21L | Hersteller : MEDER electronic (Standex) | Reed Relays 2 Form A, SPST-NO 12V Molded DIP |
auf Bestellung 307 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||
DIP12-2A72-21L | Hersteller : Standex-Meder Electronics |
Description: RELAY REED DPST 1A 12V Packaging: Tube Mounting Type: Through Hole Coil Voltage: 12VDC Operating Temperature: -20°C ~ 70°C Termination Style: PC Pin Coil Current: 24 mA Coil Type: Non Latching Contact Form: DPST-NO (2 Form A) Contact Rating (Current): 1 A Switching Voltage: 200VAC, 200VDC - Max Must Release Voltage: 1.8 VDC Must Operate Voltage: 8.4 VDC Operate Time: 0.5 ms Release Time: 0.1 ms |
auf Bestellung 66 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||
DIP12-2A72-21L | Hersteller : STANDEXMEDER |
Description: STANDEXMEDER - DIP12-2A72-21L - Reed-Relais, DPST-NO, 12 VDC, DIP, Durchsteckmontage, 500 ohm, 500 mA tariffCode: 85364900 productTraceability: No Schaltspannung, max.: 200V rohsCompliant: YES Spulenwiderstand: 500ohm Relaismontage: Durchsteckmontage Schaltstrom, max.: 500mA Kontaktkonfiguration: DPST-NO Spulenspannung: 12VDC euEccn: NLR hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 Produktpalette: DIP SVHC: No SVHC (17-Jan-2023) |
auf Bestellung 60 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||
DIP12-2A72-21L | Hersteller : StandexMeder Electronics | Reed Relay 12VDC 500Ohm 0.5A DPST-NO(19.6x7.62x7.7)mm THT Dry |
auf Bestellung 23 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||
+1 |
DIP12-2A72-21L(Relais) Produktcode: 83233 |
Hersteller : Meder |
Relais Relaistyp: Реле герконові Beschreibung: Тип контактів: 2A; Uкотушки: 12В; Iкомутації: 0.5А Abmessungen: DIP Spulenspannung: 12 VDC Strom max: 1 A Kontaktkonfiguration: DPST-NO(2A) Schaltspannung: 200 VAC; 200 VDC |
Produkt ist nicht verfügbar
|
|||||||||||||||
DIP12-2A72-21L | Hersteller : StandexMeder Electronics GmbH | Reed Relay 12VDC 500Ohm 0.5A DPST-NO(19.6x7.62x7.7)mm THT Dry |
Produkt ist nicht verfügbar |
||||||||||||||||
DIP12-2A72-21L | Hersteller : StandexMeder Electronics | Reed Relay 12VDC 500Ohm 0.5A DPST-NO(19.6x7.62x7.7)mm THT Dry |
Produkt ist nicht verfügbar |
